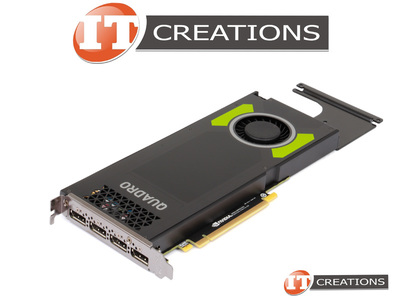

DELL NVIDIA QUADRO P4000 PASCAL GPU 8GB 1792 CUDA PARALLEL PROCESSING CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 243GB/S PCI-E 3.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - 105W MAX POWER ( 1 ) ONE 6 PIN PWR CONNECTOR - SINGLE SLOT (490-BDTP)

Part Number: 490-BDTP
Condition: Used

            Availability:  In Stock

Qty in stock:

as of 12/16/2025 12:00:00 AM PST

$858.00

Go to Cart

IT Creations difference:

Free shipping on orders over $99.00*

Inventory in Stock

Available for same day shipping on orders placed before 11am PDT

Product Details:

DELL NVIDIA QUADRO P4000 PASCAL GPU 8GB 1792 CUDA PARALLEL PROCESSING CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 243GB/S PCI-E 3.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - 105W MAX POWER ( 1 ) ONE 6 PIN PWR CONNECTOR - SINGLE SLOT DIMENSION 9.5 INCH ( L ) X 4.4 IN ( H )

MANUFACTURER: DELL / NVIDIA
PART NUMBER: 490-BDTP
CONTENT INCLUDES: ( 1 ) ONE DELL NVIDIA QUADRO P4000 PASCAL GPU - NO CABLES INCLUDED

ENGINE SPECS:

ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 1792
GPU CLOCK: 1202 MHZ
BOOST CLOCK: 1480 MHZ

MEMORY:

MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 243 GB/S
MEMORY CLOCK: 1901 MHZ ( EFFECTIVE: 7604 MHZ )

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC

DISPLAY SUPPORT:

DISPLAY RESOLUTION: 4X 4096 X 2160 AT 120HZ / 4X 5120 X 2880 AT 60HZ
MULTI MONITOR: YES
HDCP: 2.2

CONNECTIONS:

DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 105W
POWER CONNECTORS: ( 1 ) ONE 6 PIN POWER CONNECTOR

COOLING SYSTEM:

- ACTIVE FANSINK

FORM FACTOR:

- SINGLE SLOT, FULL HEIGHT

DIMENSIONS:

- 4.4 INCH ( H ) ( MEASUREMENT INCLUDES PCIE INTERFACE ) X 10.50 INCH ( L )
