Product Details:

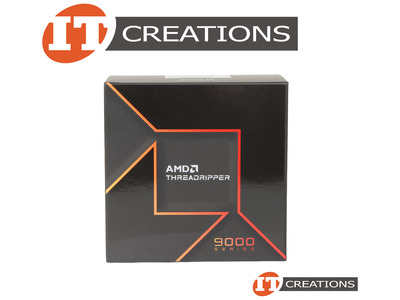

AMD RYZEN THREADRIPPER 24 CORE PROCESSOR 9960X 4.2GHZ BASE / 5.4GHZ MAX 128MB L3 CACHE TDP 350W STR5 SOCKET ( SHIMADA PEAK / ZEN 5 / 9000 SERIES ) ( 4.20GHZ / 5.40GHZ )
MANUFACTURER: AMD
PART NUMBER: 100-100001595WOF
CPU SERIES: AMD RYZEN THREADRIPPER 9000 SERIES
PROCESSOR CODE NAME: SHIMADA PEAK ( ZEN 5 )
SOCKET TYPE: STR5
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 4.2GHZ
CPU MAX TURBO FREQUENCY: 5.4GHZ
MULTI-CORE: 24-CORE
THREADS: 48
CACHE: 128MB L3
PROCESSORS TECHNOLOGY FOR CPU CORES: TSMC 4NM FinFET
TECHNOLOGY FOR I/O DIE: TSMC 6NM FinFET
THERMAL DESIGN POWER: 350W
MAX TEMPERATURE: 95 DEGREES CELSIUS
MEMORY SPECS
MEMORY GEN TYPE: DDR5
MEMORY SIGNAL TYPE: RDIMM
MAX MEMORY SPEEDS: 6400 MHZ
MAX NUM. MEMORY CHANNELS: 4
ECC SUPPORT: YES ( DEFAULT ENABLED )
EXPANSION OPTIONS
PCI EXPRESS REVISION: 5.0
PCI LANES SUPPORTED ( TOTAL / USABLE ): 92, 88
CONNECTIVITY
NATIVE USB 3.2 GEN2 ( 10GB/S ): 4
NATIVE SATA PORTS: 2
NATIVE SUPPORT: BOOT, RAID0, RAID1, RAID5, RAID10
MANAGEABILITY
DASH SUPPORT: YES
OPERATING SYSTEM
OS SUPPORT:
- WINDOWS 11 64 BIT
- RHEL X86 64 BIT
- UBUNTU X86 64 BIT
- WINDOWS 10 64 BIT
SECURITY
AMD MEMORY GUARD: YES
AMD SECURE PROCESSOR SUPPORT: YES
WINDOWS SECURE BOOT SUPPORT: YES
UEFI SECURE BOOT SUPPORT: YES
WINDOWS DEVICE GUARD SUPPORT: YES
GUEST MODE EXECUTION ( GMET ) TRAP SUPPORT: YES
VIRTUALIZATION BASED SECURITY ( VBS ) SUPPORT: YES
WINDOWS SECURED CORE PC SUPPORT: YES
FIRMWARE TPM: YES
AMD-V ( SVM ) SUPPORT: YES
AMD-V NESTED PAGING ( RVI ) SUPPORT: YES
AMD AVIC ( INTERRUPT VIRTUALIZATION ) SUPPORT: YES
AMD-VI ( I/O MMU VIRTUALIZATION ) SUPPORT: YES
SECOND LEVEL ADDRESS TRANSLATION ( SLAT ) SUPPORT: YES
ADVANCED ENCRYPTION STANDARD NEW INSTRUCTIONS ( AES-NI ) SUPPORT: YES
AMD ENHANCED VIRUS PROTECTION ( NX BIT ): YES
KEY FEATURES
SUPPORTED TECHNOLOGIES:
- AMD EXPO TECHNOLOGY
- AMD RYZEN TECHNOLOGIES
ADDITIONAL FEATURES
UNLOCKED FOR OVERCLOCKING: YES
AMD EXPO MEMORY OVERCLOCKING TECHNOLOGY: YES
PRECISION BOOST OVERDRIVE: YES
CURVE OPTIMIZER VOLTAGE OFFSETS: YES
CPU BOOST TECHNOLOGY: PRECISION BOOST 2
INSTRUCTION SET: X86-64
SUPPORTED EXTENSIONS: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-PLUS, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, X86-64
