Product Details:

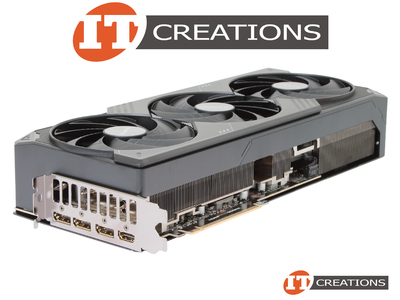

GIGABYTE GEFORCE RTX 5090 WINDFORCE OC 32G GPU 32GB 21760 CUDA CORES MEMORY INTERFACE 512 BIT GDDR7 MEMORY BANDWIDTH 1.79TB/S PCI-E 5.0 X16 ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - NVIDIA BLACKWELL ARCHITECTURE TRIPLE FAN ACTIVE COOLING 575W MAX POWER ( 1 ) ONE 16 PIN PWR CONNECTOR ( 12P+4P ) - TRIPLE SLOT DIMENSIONS 13.5 INCH ( L ) X 5.9 IN ( W ) X 2.6 ( H )
MANUFACTURER: GIGABYTE
PART NUMBER: GV-N5090WF3OC-32GD
CONTENT INCLUDES: ( 1 ) ONE GIGABYTE GEFORCE RTX 5090 WINDFORCE OC 32G GPU - NO CABLES INCLUDED
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
ENGINE SPECS:
ENGINE ARCHITECTURE: BLACKWELL
CUDA CORES: 21,760
TENSORE CORES: 5TH GEN
RT CORES: 4TH GEN
AI TOPS: 3352 AI TOPS
RT CORE PERFORMANCE: 170
GPU CLOCK: 2017 MHZ
BOOST CLOCK: 2467 MHZ
PROCESS SIZE: 5NM
TRANSISTORS: 92.2 BILLION
DIE SIZE: 750 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 32GB
MEMORY INTERFACE: GDDR7
MEMORY INTERFACE WIDTH: 512 BIT
MEMORY BANDWIDTH: 1792GB/S ( 1,792GB/S )
MEMORY CLOCK: 1750MZH - 28 GB/S EFFECTIVE
SUPPORT:
BUS SUPPORT: PCI-E 5.0
PHYSICAL BUS INTERFACE: PCI-E 5.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA BLACKWELL TECHNOLOGY, CUDA CORES TECHNOLOGY, BLACKWELL STREAMING MULTIPROCESSOR ( SM ), 5TH GEN TENSOR CORES ( FP4 PRECISION / DLSS 4 MULTI FRAME GEN ), 4TH GEN RAY TRACING CORES, 9TH GEN NVENC, 6TH GEN NVDEC ( UP TO DOUBLE WITH H.264 DECODE - WITH 4:2:2 H.264 AND HEVC ), GDDR7 MEMORY, NVIDIA APP, NVIDIA G-SYNC, RTX REMIX, NVIDIA BROADCAST, GAME READY DRIVERS, NVIDIA STUDIO DRIVERS, RTX HDR, VR READY, NVIDIA REFLEX, AV1 ENCODE / DECODE, DIRECTX 12 ULTIMATE, SHADER MODEL 6.9, OPENGL 4.6, VULKAN 1.4, CUDA 12.0, SHADER MODEL 6.9, HDCP 2.3, PCI EXPRESS GEN5
OS SUPPORT: MICROSOFT WINDOWS 11 ( 64 BIT ), MICROSOFT WINDOWS 10 ( 64 BIT ), UBUNTU, LINUX
DISPLAY SUPPORT:
MULTI MONITOR: YES, UP TO 4 DISPLAYS
DISPLAY RESOLUTION:
- 8K AT 165HZ WITH DSC
- 4K AT 480HZ
CONNECTIONS:
DISPLAY CONNECTORS: ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI PORT
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE CEM5 12P+4P )
THERMAL AND POWER SPECS:
TOTAL POWER CONSUMPTION ( W ): 575W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 1000W
RECOMMENDED MEMORY SIZE: SYSTEM MEMORY GREATER THAN OR EQUAL TO GPU MEMORY; TWICE THE GPU MEMORY RECOMMENDED
NOTE:
- THE RECOMMENDED POWER IS RATED AT A LOWER END CONFIGURATION. MID END TO HIGH END SYSTEM CONFIGURATION WILL REQUIRE A HIGHER WATTAGE PSU
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
COOLING SYSTEM:
- ACTIVE - ( 3 ) THREE ACTIVE FANSINK ( 3 FANS )
FORM FACTOR:
- TRIPLE SLOT
DIMENSIONS:
- 13.5 INCH ( L ) X 5.9 INCH ( W ) X 2.6 INCH ( H )
