Product Details:

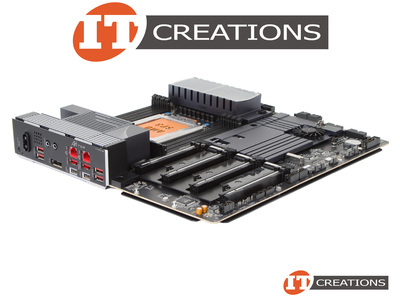

GIGABYTE TRX50 AI TOP MOTHERBOARD - SYSTEM BOARD E-ATX FORM FACTOR ( 1 ) ONE STR5 SOCKET ( COMPATIBLE WITH AMD RYZEN THREADRIPPER PRO ( 9000-WX / 7000-WX SERIES ) / THREADRIPPER ( 9000 / 7000 SERIES ) ( 8 ) EIGHT DDR5 DIMM SLOTS ( 2 ) TWO 10GBE LAN PORTS ( MARVELL AQTION AQC113C ) UP TO ( 4 ) FOUR PCI-E 5.0 INTERFACES ( 4X16 ) - ( 4 ) FOUR PCIE GEN4 X4 NVME M.2 INTERFACES + ( 4 ) FOUR SATA 6GB/S CONNECTORS
MANUFACTURER: GIGABYTE
PART NUMBER: TRX50 AI TOP-REF
CONFIGURATION INCLUDES: ( 1 ) ONE GIGABYTE TRX50 AI TOP MOTHERBOARD WITH CABLE ASSEMBLY
NOTE:
- MOTHERBOARD DOES NOT INCLUDE ANY PROCESSOR, MEMORY OR STORAGE
- COMPATIBLE PRODUCTS AVAILABLE. PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR OPTIONS
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: STR5 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: AMD RYZEN THREADRIPPER PRO ( 9000-WX SERIES / 7000-WX SERIES ) / AMD RYZEN THREADRIPPER ( 9000 / 7000 SERIES )
PROCESSOR CORE COUNT: UP TO 96 CORES
PROCESSOR TDP: UP TO 350W
NOTE:
- NO PROCESSORS INCLUDED WITH THIS ITEM
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 8 ) EIGHT DIMM SLOTS
MEMORY GENERATION: DDR5
MEMORY TYPE: RDIMM / RDIMM 3DS
MEMORY CAPACITY: UP TO 2TB
MEMORY SPEEDS: UP TO 8000MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS
NOTE:
- PROCESSOR MODEL MAY AFFECT MEMORY CAPACITY AND / OR SPEEDS
- SUPPORTS 8 CHANNELS WHEN USING AMD RYZEN THREADRIPPER PRO PROCESSORS OR 4 CHANNELS WHEN USING AMD RYZEN THREADRIPPER PROCESSORS
- SUPPORT FOR AMD EXTENDED PROFILES FOR OVERCLOCKING ( AMD EXPO ) AND EXTREME MEMORY PROFILE ( XMP ) MEMORY MODULES
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 4 ) FOUR M.2 INTERFACES
ADDITIONAL STORAGE SUPPORT: ( 4 ) FOUR SATA CONNECTORS
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / PCIE GEN5 X4 NVME
NOTE:
- M.2 PCIE GEN5 X4 SUPPORTED WITH AMD RYZEN THREADRIPPER PRO PROCESSORS
- M.2 PCIE GEN5 X4 SUPPORTED WITH AMD RYZEN THREADRIPPER PROCESSORS 9000 SERIES
- M.2 PCIE GEN4 X4 SUPPORTED WITH AMD RYZEN THREADRIPPER PROCESSORS 7000 SERIES
- 1X M.2 INTERFACE WILL BE UNAVAILABLE WHEN USING AMD RYZEN THREADRIPPER PROCESSORS 9000 SERIES OR 7000 SERIES
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 4 ) FOUR PCI-E INTERFACES
PCI INTERFACE TYPE: PCI-E 5.0 / 4.0 - INTERFACES MAY VARY
- 3X16 GEN5
- 1X16 GEN4
NOTE:
- PROCESSOR MODEL MAY AFFECT PCI-E SPEEDS
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 10GBE LAN PORTS ( MARVELL AQTION AQC113C )
NOTE:
- LAN PORTS LOCATED ON REAR PANEL
AUDIO
REAR PANEL AUDIO: REALTEK ALC4080 CODEC
- SUPPORT FOR DTS:X ULTRA
- HIGH DEFINITION AUDIO
- 2 CHANNEL
FRONT PANEL AUDIO: REALTEK ALC897 CODEC
REAR PANEL CONNECTORS
- 1X Q-FLASH PLUS BUTTON
- 2X SMA ANTENNA CONNECTORS ( 2T2R )
- 1X DISPLAYPORT DP ( IN )
- 1X USB4 USB TYPE-C PORT ( DP )
- 1X USB4 USB TYPE-C PORT
- 6X USB 3.2 GEN2 TYPE-A PORTS ( RED )
- 2X RJ-45 PORT
- 2X AUDIO JACKS
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS 11 ( 64 BIT )
- UBUNTU 24.04 LTS
FORM FACTOR
- E-ATX
- 30.5CM X 33.0CM
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON GIGABYTE DOCUMENTATION DATED JUNE 2025 - INFORMATION MAY CHANGE
