Product Details:

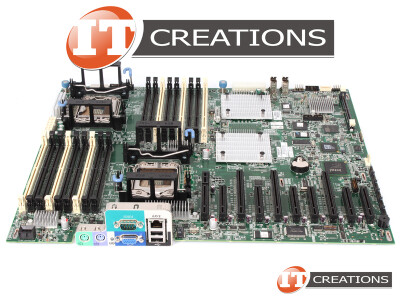

HP MOTHERBOARD FOR HP PROLIANT DL370 G6 / ML370 G6 - SYSTEM BOARD
MANUFACTURER: HP
PART NUMBER: 606200-001
COMPATIBILITY: HP PROLIANT DL370 G6 / ML370 G6 / STOREONCE 4420 BACKUP
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: LGA1366
PROCESSOR TYPE: INTEL XEON 5500 / INTEL XEON 5600 PROCESSOR FAMILY
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 18 TOTAL MEMORY SLOTS
MEMORY TYPE: UP TO DDR3-1333 ( DEPENDENT ON PROCESSOR SPECIFICATIONS )
RDIMM MEMORY SIZE CAPACITY: UP TO 384GB
UDIMM MEMORY SIZE CAPACITY: UP TO 48GB
PCI INTERFACE DETAIL
NUMBER OF PCI SLOTS: 12 INTERFACES ( ONBOARD )
- SLOT1 PCI-E X4 ( X8 WIRED / FULL HEIGHT, HALF LENGTH )
- SLOT2 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT3 PCI-E 2.0 X16 ( FULL HEIGHT, FULL LENGTH )
- SLOT4 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT6 PCI-E 2.0 X8 ( X16 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT7 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT8 PCI-E 2.0 X16 ( FULL HEIGHT, FULL LENGTH )
- SLOT9 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT10 PCI-E 2.0 X8 ( FULL HEIGHT, HALF LENGTH )
- SLOT11 PCI-X 64 BIT ( OPTIONAL ) ( 133MHZ / FULL HEIGHT, FULL LENGTH )
- SLOT12 PCI-X 64 BIT ( OPTIONAL ) ( 133MHZ / FULL HEIGHT, FULL LENGTH )
ADDITIONAL PCI INFORMATION: 100MHZ SPEED FOR PCI-X SLOTS WHEN SLOT11 AND SLOT12 ARE UTILIZED
