Product Details:

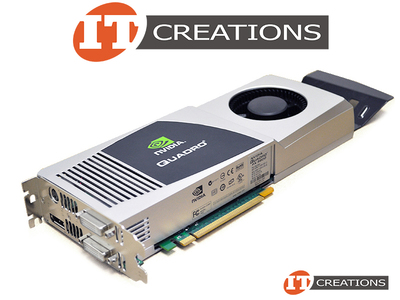

NVIDIA QUADRO FX 5800 GRAPHICS CARD 4GB GDDR3 240 CUDA CORES 512 BIT MEMORY INTERFACE 102 GB/S MEMORY BANDWIDTH PCI-E 2.0 X16 GRAPHICS PROCESSING UNIT GPU VIDEO CARD
MANUFACTURER: NVIDIA
PART NUMBER: QUADRO FX5800
ENGINE SPECS:
CUDA CORES: 240
MEMORY:
MEMORY CONFIGURATION: 4GB
MEMORY INTERFACE: GDDR3
MEMORY INTERFACE WIDTH: 512 BIT
MEMORY BANDWIDTH: 102 GB/S
SUPPORT:
OPENGL ( OPEN GRAPHICS LIBRARY ): 3.1
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
SUPPORTED TECHNOLOGIES AND FEATURES: SHADER MODEL 4.0, OPENGL 3.1, MICROSOFT DIRECTX 10, NVIDIA MULTI-OS, NVIDIA CUDA ARCHITECTURE, SDI OPTION, SLI FRAME RENDERING SUPPORT, GENLOCK FRAMELOCK, FULL SCENE ANTIALIASING FSAA ( MAXIMUM ) 32X, ENERGYSTAR ENABLING, 3D VISION, 3D VISION PRO, ULTRA FAST MEMORY BANDWIDTH, 128 BIT PRECISION GRAPHICS PIPELINE, 64 BIT FLOATING POINT PRECISION, ADVANCED COLOR COMPRESSION, EARLY Z-CULL, CG HIGH LEVEL GRAPHICS SHADER LANGUAGE, ESSENTIAL FOR MICROSOFT WINDOWS VISTA 32 BIT 64 BIT, FAST 3D TEXTURE TRANSFER, FRAME SYNCHRONIZATION, NVIDIA GRAPHICS API EXTENSIONS, HARDWARE 3D WINDOW CLIPPING, HARDWARE ACCELERATED PIXEL READ BACK, HIGHEST WORKSTATION APPLICATION PERFORMANCE, HIGH PERFORMANCE DISPLAY OUTPUTS, 8K TEXTURE AND RENDER PROCESSING, NVIDIA HIGH PRECISION HIGH DYNAMIC RANGE HDR TECHNOLOGY, NVIDIA PUREVIDEO HD TECHNOLOGY, NVIDIA UNIFIED GPU ARCHITECTURE, NVIDIA NVIEW MULTI DISPLAY TECHNOLOGY, PROFESSIONAL 3D STEREO SOLUTIONS, ROTATED GRID FULL SCENE ANTIALIASING RG FSAA, NVIDIA SLI TECHNOLOGY, ULTRA QUIET DESIGN, UNIFIED DRIVER ARCHITECTURE UDA, PCI-EXPRESS 2.0 SUPPORT, 30 BIT COLOR FIDELITY, CROSS PLATFORM, CROSS INDUSTRY VISUAL COMPUTING SOLUTIONS
SLI SUPPORT: YES
DISPLAY SUPPORT:
MAXIMUM DISPLAY RESOLUTION DIGITAL: 2560 X 1600 AT 60 MHZ
CONNECTIONS:
DISPLAY CONNECTORS: ( 2 ) TWO DUAL LINK DVI-I PORT ( 1 ) ONE DISPLAYPORT ( 3 ) DIGITAL OUTPUTS ( 2 ) ANALOG OUTPUTS
ADDTIONAL CONNECTORS: ( 3 ) DIGITAL OUTPUTS ( 2 ) ANALOG OUTPUTS
THERMAL AND POWER SPECS:
MAXIMUM POWER CONSUMPTION: 189W
COOLING SYSTEM:
( 1 ) ONE ACTIVE FANSINK
