Product Details:

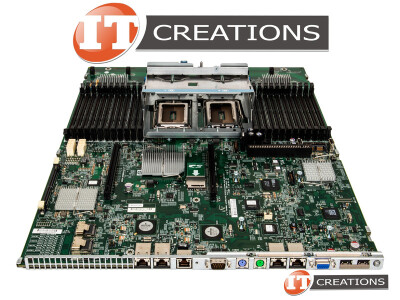

HP MOTHERBOARD FOR HP PROLIANT DL385 G7 ( GEN7 ) - SYSTEM BOARD SUPPORTS AMD MAGNY COURS / INTERLAGOS PROCESSORS
MANUFACTURER: HP
PART NUMBER: 669515-001
COMPATIBILITY: HP PROLIANT DL385 G7 ( GEN7 )
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: G34
PROCESSOR TYPE: AMD OPTERON 6000 PROCESSOR FAMILY ( MAGNY COURS / INTERLAGOS )
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 24 TOTAL MEMORY SLOTS
MEMORY TYPE: UP TO DDR3-1600 ( DEPENDENT ON PROCESSOR SPECIFICATIONS )
RDIMM MEMORY SIZE CAPACITY: UP TO 512GB
UDIMM MEMORY SIZE CAPACITY: UP TO 64GB
PCI INTERFACE DETAIL
NUMBER OF PCI SLOTS: 2 INTERFACES ( ONBOARD ) ( UP TO 6 SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY PCI RISER SLOT ( STANDARD ):
- SLOT1 PCI-E 2.0 X8 ( X16 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT2 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, HALF LENGTH )
- SLOT3 PCI-E 2.0 X4 ( X8 WIRED / FULL HEIGHT, HALF LENGTH )
SECONDARY PCI RISER SLOT ( OPTIONAL ):
- SLOT4 PCI-E 2.0 X8 ( X16 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-E 2.0 X4 ( X8 WIRED / LOW PROFILE )
- SLOT6 PCI-E 2.0 X4 ( X8 WIRED / LOW PROFILE )
PRIMARY PCIE / PCI-X RISER SLOT ( OPTIONAL ):
- SLOT1 PCI-X 64 BIT ( FULL HEIGHT, FULL LENGTH )
- SLOT2 PCI-X 64 BIT ( FULL HEIGHT, HALF LENGTH )
- SLOT3 PCI-E 2.0 X8 ( FULL HEIGHT, HALF LENGTH )
SECONDARY PCIE / PCI-X RISER SLOT ( OPTIONAL ):
- SLOT4 PCI-X 64 BIT ( FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-X 64 BIT ( LOW PROFILE )
- SLOT6 PCI-E 2.0 X8 ( LOW PROFILE )
PRIMARY X16 RISER SLOT ( OPTIONAL ):
- SLOT1 PCI-E 2.0 X16 ( FULL HEIGHT, FULL LENGTH / SUPPORTS UP TO 150W )
SECONDARY X16 RISER SLOT ( OPTIONAL ):
- SLOT1 PCI-E 2.0 X16 ( FULL HEIGHT, FULL LENGTH / SUPPORTS UP TO 150W )
PRIMARY X8 PCIE RISER SLOT ( OPTIONAL ):
- SLOT1 PCI-E 2.0 X8 ( X16 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT2 PCI-E 2.0 X8 ( X16 WIRED / FULL HEIGHT, HALF LENGTH )
SECONDARY X8 PCIE RISER SLOT ( OPTIONAL ):
- SLOT4 PCI-E 2.0 X8 ( X16 WIRED / FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-E 2.0 X8 ( X16 WIRED / LOW PROFILE )
