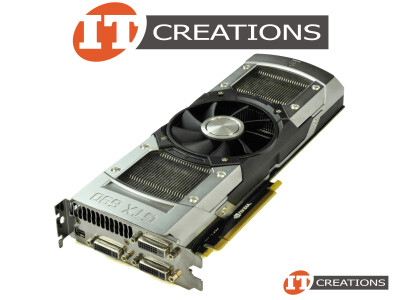

ASUS NVIDIA GEFORCE GTX 690 GRAPHICS CARD 4GB 3072 CUDA CORES MEMORY INTERFACE 512 BIT GDDR5 MEMORY BANDWIDTH 384GB/S 6GB/S PCI-E 3.0 X16 ( 2 ) TWO DUAL LINK DVI-I ( 1 ) ONE DUAL LINK DVI-D ( 1 ) ONE MINI DISPLAYPORT VIDEO CARD (GTX690-4GD5)

Part Number: GTX690-4GD5

Condition: Refurbished

Availability: ETA 3-4 days

Request Pricing
as of 04/03/2026 12:16:00 PM PDT

IT Creations difference:

Free shipping on orders over $99.00* (within the continental US)
Product Details:

ASUS NVIDIA GEFORCE GTX 690 GRAPHICS CARD 4GB 3072 CUDA CORES MEMORY INTERFACE 512 BIT GDDR5 MEMORY BANDWIDTH 384GB/S 6GB/S PCI-E 3.0 X16 ( 2 ) TWO DUAL LINK DVI-I ( 1 ) ONE DUAL LINK DVI-D ( 1 ) ONE MINI DISPLAYPORT VIDEO CARD

MANUFACTURER: ASUS / NVIDIA
PART NUMBER: GTX690-4GD5

ENGINE SPECS:

CUDA CORES: 3072
BASE CLOCK: 915 MHZ
BOOST CLOCK: 1019 MHZ
TEXTURE FILL RATE: 234 BILLION / SEC

MEMORY:

MEMORY CLOCK: 3004 MHZ ( 1502 MHZ GGDR5 )
MEMORY CONFIGURATION: 4096MB ( 2048MB PER GPU )
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 512 BIT ( 256 BIT PER GPU )
MEMORY BANDWIDTH: 384GB/S

SUPPORT:

OPENGL ( OPEN GRAPHICS LIBRARY ): 4.2
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
CERTIFIED FOR WINDOWS 7: YES
SUPPORTED TECHNOLOGIES: KEPLER GPU ARCHITECTURE, NVIDIA GPU BOOST, NVIDIA ADAPTIVE VERTICAL SYNC, 3D VISION: 3D BLU-RAY, 3D GAMING READY, 3D VISION LIVE ( PHOTOS AND VIDEOS ), NVIDIA CUDA TECHNOLOGY, DIRECTX 11.1, NVIDIA PHYSX TECHNOLOGY, TXAA, SCALABLE LINK INTERFACE ( SLI ), ADAPTIVE VSYNC, FXAA, 3D VISION SURROUND, PCI EXPRESS 3.0
SLI SUPPORT: QUAD ( MUST BE PAIRED WITH SAME MODEL TYPE GRAPHICS CARD-OTHER MANUFACTURE OK

DISPLAY SUPPORT:

MULTI MONITOR: 4 DISPLAYS
MAXIMUM DIGITAL RESOLUTION: 4096 X 2160
MAXIMUM VGA RESOLUTION: 2048 X 1536
HIGH BANDWIDTH DIGITAL CONTENT PROTECTION HDCP: YES
HDMI: YES ( VIA DONGLE )

CONNECTIONS:

DISPLAY CONNECTORS: ( 2 ) TWO DUAL LINK DVI-I ( 1 ) ONE DUAL LINK DVI-D ( 1 ) ONE MINI DISPLAYPORT 1.2
AUDIO INPUT FOR HDMI: INTERNAL
POWER CONNECTORS: ( 2 ) TWO 8 PIN

THERMAL AND POWER SPECS:

MAXIMUM GPU TEMPERATURE: 95C / 208.4
MAXIMUM GRAPHICS CARD POWER: 300W
MINIMUM SYSTEM POWER: 650W

ADDITIONAL INFORMATION:

NVIDIA 3D Vision Surround require two or more graphics cards in NVIDIA SLI configuration, 3D Vision glasses and three matching 3D Vision-Ready displays. 4096x2160 resolution supported through a single HDMI or Displayport connector. 4096x2160 resolution is not supported with two DVI connectors.
