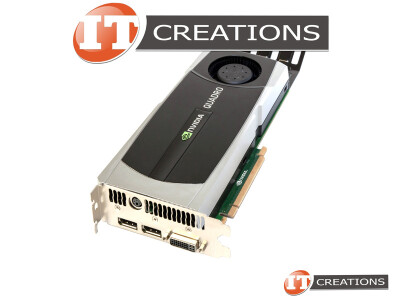

HP NVIDIA QUADRO 6000 GRAPHICS CARD 6GB 448 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 144GB/S PCI-E 2.0 X 16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP ( 1 ) ONE 3 PIN STEREO OUTPUT MPC 204W GRAPHICS PROCESSING UNIT GPU VIDEO video
HP NVIDIA QUADRO 6000 GRAPHICS CARD 6GB 448 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 144GB/S PCI-E 2.0 X 16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP ( 1 ) ONE 3 PIN STEREO OUTPUT MPC 204W GRAPHICS PROCESSING UNIT GPU VIDEO preview image #0
HP NVIDIA QUADRO 6000 GRAPHICS CARD 6GB 448 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 144GB/S PCI-E 2.0 X 16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP ( 1 ) ONE 3 PIN STEREO OUTPUT MPC 204W GRAPHICS PROCESSING UNIT GPU VIDEO preview image #1

HP NVIDIA QUADRO 6000 GRAPHICS CARD 6GB 448 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 144GB/S PCI-E 2.0 X 16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP ( 1 ) ONE 3 PIN STEREO OUTPUT MPC 204W GRAPHICS PROCESSING UNIT GPU VIDEO (WS097AA)

Part Number: WS097AA

Condition: Used

Availability: ETA 3-4 days

Request Pricing
as of 04/03/2026 09:25:00 PM PDT

IT Creations difference:

Free shipping on orders over $99.00* (within the continental US)
Product Details:

HP NVIDIA QUADRO 6000 GRAPHICS CARD 6GB 448 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 144GB/S PCI-E 2.0 X 16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP ( 1 ) ONE 3 PIN STEREO OUTPUT MPC 204W GRAPHICS PROCESSING UNIT GPU VIDEO CARD

MANUFACTURER: HP / NVIDIA
PART NUMBER: WS097AA

ENGINE SPECS:

CUDA CORES: 448
GIGAFLOPS ( SINGLE PRECISION ): 1030.4
GIGAFLOPS ( DOUBLE PRECISION ): 515.2

MEMORY:

MEMORY CONFIGURATION: 6GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 144GB/S

SUPPORT:

OPENGL ( OPEN GRAPHICS LIBRARY ): 4.4
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
CERTIFIED FOR WINDOWS 7: YES
SUPPORTED TECHNOLOGIES AND FEATURES: SHADER MODEL 5.0, OPENGL 4.4, MICROSOFT DIRECTX 11, NVIDIA MULTI OS TECHNOLOGY, NVIDIA SLI TECHNOLOGY, NVIDIA SLI MOSAIC TECHNOLOGY, NVIDIA CUDA ARCHITECTURE, NVIDIA QUADRO G-SYNC OPTION, SDI OPTION, SLI FRAME RENDERING SUPPORT, NVIEW DISPLAY MANAGEMENT SOFTWARE, FULL SCENE ANTIALIASING FSAA ( MAXIMUM ) 64X ( 128X WITH SLI ), NVIDIA SCALABLE GEOMETRY ENGINE, FAST 64 BIT FLOATING POINT PRECISION, FRAMEBUFFERS ( UP TO 6GB OF GDDR5 ), ULTRAFAST BANDWIDTH, ERROR CORRECTING CODE ECC MEMORY, NVIDIA PARALLEL DATACACHE, NVIDIA GIGATHREAD ENGINE, DUAL COPY ENGINES, FAST 3D TEXTURE TRANSFER, HARDWARE 3D WINDOW CLIPPING, UNIFIED DRIVER ARCHITECTURE UDA, GPU TESSELLATION, 16K TEXTURE, RENDER PROCESSING, NVIDIA HIGH PRECISION HIGH DYNAMIC RANGE HDR TECHNOLOGY, HIGH QUALITY DISPLAY CONNECTORS, 30 BIT COLOR FIDELITY, NVIDIA QUADRO DIGITAL VIDEO PIPELINE ( 8- 10- 12-BIT SDI VIA QUADRO SDI ), NVIDIA 3D VISION, NVIDIA 3D VISION PRO, OPENGL QUAD BUFFERED STEREO SUPPORT, PROFFESIONAL 3D STEREO SYNCHRONIZATION, PROGRAMMING THE CUDA PARALLEL COMPUTING ARCHITECTURE, CG PROGRAMMING, MICROSOFT WINDOWS 7 SUPPORT, NVIDIA GRAPHICS API EXTENSIONS, NVIDIA APPLICATION ACCELERATION ENGINES SUPPORT, ULTRA QUIET DESIGN, PCI-EXPRESS 2.0 SUPPORT
SLI SUPPORT: YES

DISPLAY SUPPORT:

MAXIMUM DISPLAY RESOLUTION DIGITAL: 2560 X 1600 AT 60HZ
MAXIMUM DUAL LINK DVI-I RESOLUTION: 3840 X 2400 AT 24HZ
HDMI: YES ( FROM A CABLE )

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I PORT ( 2 ) TWO DISPLAYPORTS ( 1 ) ONE 3 PIN STEREO OUTPUT CONNECTOR

THERMAL AND POWER SPECS:

MAXIMUM POWER CONSUMPTION: 204W

COOLING SYSTEM:

HEATSINKS: ( 1 ) ONE PASSIVE HEATSINK
FANS: ( 1 ) ONE FAN
