Product Details:

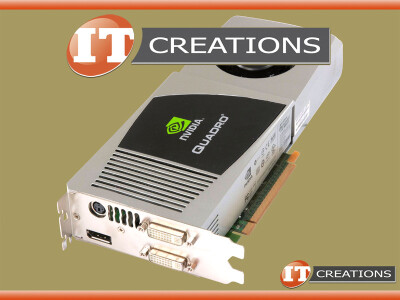

HP NVIDIA QUADRO FX 5800 GRAPHICS CARD 4GB 240 CUDA CORES MEMORY INTERFACE 512 BIT GDDR3 MEMORY BANDWIDTH 102GB/S ULTRA HIGH END PCI-E X16 ( 2 ) TWO DUAL LINK DVI-I PORTS ( 1 ) ONE DISPLAYPORT DP ( 1 ) ONE STEREO 3 PIN MINI DIN PORT 189W GRAPHICS PROCESSING UNIT GPU VIDEO CARD
MANUFACTURER: HP / NVIDIA
PART NUMBER: 900-50607-0350-002-HP
ENGINE SPECS:
CUDA CORES: 240
MEMORY:
MEMORY CONFIGURATION: 4GB
MEMORY INTERFACE: GDDR3
MEMORY INTERFACE WIDTH: 512 BIT
MEMORY BANDWIDTH: 102GB/S
SUPPORT:
OPENGL ( OPEN GRAPHICS LIBRARY ): 3.1
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
SUPPORTED TECHNOLOGIES AND FEATURES: SHADER MODEL 4.0, OPENGL 3.1, MICROSOFT DIRECTX 10, NVIDIA MULTI-OS, NVIDIA CUDA ARCHITECTURE, SDI OPTION, SLI FRAME RENDERING SUPPORT, GENLOCK FRAMELOCK, FULL SCENE ANTIALIASING FSAA ( MAXIMUM ) 32X, ENERGYSTAR ENABLING, NVIEW DISPLAY MANAGEMENT, ADVANCED COLOR COMPRESSION, EARLY Z-CULL, CG HIGH LEVEL GRAPHICS SHADER LANGUAGE, FAST 3D TEXTURE TRANSFER, FRAME SYNCHRONIZATION, EXTERNAL SYNCHRONIZATION, NVIDIA GRAPHICS API EXTENSIONS, HARDWARE 3D WINDOW CLIPPING, HARDWARE ACCELERATED PIXEL READ BACK, HIGHEST WORKSTATION APPLICATION PERFORMANCE, 8K TEXTURE, RENDER PROCESSING, NVIDIA HIGH PRECISION HIGH DYNAMIC RANGE HDR TECHNOLOGY, NVIDIA PUREVIDEO HD TECHNOLOGY, NVIDIA UNIFIED GPU ARCHETECTURE, NVIDIA NVIEW MULTI DISPLAY TECHNOLOGY, PCI EXRESS 2.0, PROFFESIONAL 3D STEREO SOLUTIONS, ROTATED GRID FULL SCENE ANTIALIASING RG FSAA, NVIDIA SLI TECHNOLOGY, ULTRA QUIET, UNIFIED DRIVER ARCHITECTURE UDA, 30 BIT COLOR FIDELITY, 3D VISION, 3D VISION PRO
SLI SUPPORT: YES
DISPLAY SUPPORT:
MAXIMUM DISPLAY RESOLUTION DIGITAL: 2560 X 1600 AT 60HZ
CONNECTIONS:
DISPLAY CONNECTORS: ( 2 ) TWO DUAL LINK DVI-I PORT ( 1 ) ONE DISPLAYPORT ( 1 ) ONE 3 PIN MINI DIN STEREO OUTPUT CONNECTOR
THERMAL AND POWER SPECS:
MAXIMUM POWER CONSUMPTION: 189W
COOLING SYSTEM:
HEATSINKS: ( 1 ) ONE PASSIVE HEATSINK
FANS: ( 1 ) ONE FAN
