Product Details:

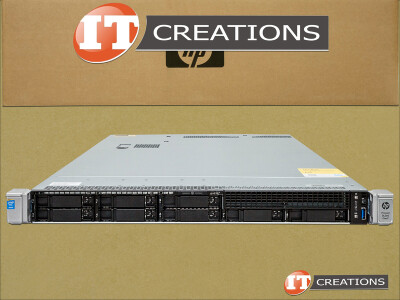

HPE PROLIANT DL360 G9 RACK 2.5 INCH SFF 8 BAY HPHD HPPS 1U SERVER CHASSIS ( GEN9 )
MANUFACTURER: HP
PART NUMBER: HP HP DL360 G9 2.5 8 BAY
NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 10 BAY SAS, SATA, OR NVME COMPATIBLE - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF ( UP TO 4 BAY SAS / SATA ), PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
PROCESSOR COMPATIBILITY: INTEL XEON E5-2600V4 / E5-2600V3 PROCESSOR FAMILY ( BROADWELL / HASWELL )
PROCESSOR CORE COUNT: UP TO 22 CORES PER SOCKET
PROCESSOR TDP: UP TO 145W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS ( 12 DIMMs PER PROCESSOR )
LRDIMM MEMORY SIZE CAPACITY: UP TO 3TB
RDIMM MEMORY SIZE CAPACITY: UP TO 768GB
NVDIMM MEMORY SIZE CAPACITY: UP TO 128GB
MEMORY SPEEDS: DDR4-2400MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 4 CHANNELS PER PROCESSOR ( 3 DIMMS PER CHANNEL )
NOTE:
- NVDIMMs ONLY SUPPORTED WITH INTEL XEON E5-2600V4 FAMILY AND CAN NOT BE MIXED WITH LRDIMMs
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
MAX STORAGE SIZE: UP TO 153TB SAS SSD OR 76.8TB SATA SSD OR 20TB SAS / SATA HDD
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 INTERFACES ( DUAL DRIVE ENABLEMENT KIT )
NOTE:
- 8+2 STORAGE CONFIGURATIONS ALSO AVAILABLE
- UP TO 6 TOTAL PCIE NVME DRIVES SUPPORTED
- ( 2 ) TWO M.2 INTERFACES VIA DUAL DRIVE ENABLEMENT KIT IS OPTIONAL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E SLOTS
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 1X16 FH, 3/4 LENGTH + 1X8 HH PRIMARY GPU RISER ( STANDARD )
- 1X16 FHFL LOW PROFILE SLOT3 RISER ( SECONDARY OPTIONAL )
- 1X16 FH, 3/4 LENGTH UP TO 9.5 INCH SLOT3 RISER ( SECONDARY OPTIONAL )
NOTE:
- SLOT3 RISER REQUIRES THE 2ND PROCESSOR CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1400W
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER
- RED HAT ENTERPRISE LINUX ( RHEL )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- CANONICAL UBUNTU
- ORACLE LINUX
- CENTOS ( CENT OS )
- VMWARE
- CITRIX XENSERVER
- ORACLE SOLARIS
- WIND RIVER LINUX
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED JULY 2019 - INFORMATION MAY CHANGE
