Product Details:

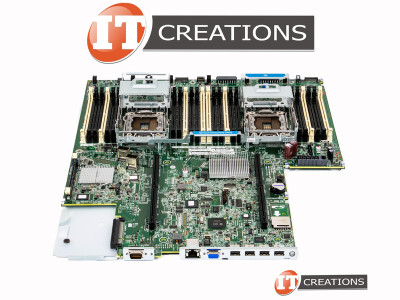

HP MOTHERBOARD FOR HP PROLIANT DL380P G8 ( GEN8 ) - SYSTEM BOARD LATCH TYPE CAGE MOBO
MANUFACTURER: HP
PART NUMBER: 622217-00A
COMPATIBILITY: HP PROLIANT DL380P G8 ( GEN8 )
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA2011
PROCESSOR TYPE: INTEL XEON E5-2600 / INTEL XEON E5-2600V2 PROCESSOR FAMILY
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 24 TOTAL MEMORY SLOTS ( 3 DIMM SLOT PER CHANNEL / 4 CHANNELS PER PROCESSOR )
MEMORY TYPE: UP TO DDR3-1600 ( SPEEDS DEPENDENT ON PROCESSOR SPECIFICATION )
LRDIMM MEMORY SIZE CAPACITY: UP TO 768GB ( 24 SLOTS X 32GB AT 1066MHZ )
RDIMM MEMORY SIZE CAPACITY: UP TO 384GB ( 24 SLOTS X 16GB AT 1333MHZ )
UDIMM MEMORY SIZE CAPACITY: UP TO 128GB ( 16 SLOTS X 8GB AT 1600MHZ )
HDIMM MEMORY SIZE CAPACITY: UP TO 768GB ( 24 SLOTS X 32GB AT 1333MHZ )
PCI INTERFACE DETAIL
NUMBER OF PCI SLOTS: 2 INTERFACES ( UP TO 6 SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER:
- SLOT1 PCI-E 3.0 X16 ( CPU1 ) ( FULL HEIGHT, FULL LENGTH )
- SLOT2 PCI-E 3.0 X8 ( CPU1 ) ( FULL HEIGHT, HALF LENGTH )
- SLOT3 PCI-E 2.0 X4 ( CHIPSET ) ( X8 WIRED / FULL HEIGHT, HALF LENGTH )
3 SLOT RISER ( SECONDARY OPTIONAL ):
- SLOT4 PCI-E 3.0 X16 ( CPU2 ) ( FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-E 3.0 X8 ( CPU2 ) ( FULL HEIGHT, HALF LENGTH )
- SLOT6 PCI-E 3.0 X8 ( CPU2 ) ( FULL HEIGHT, HALF LENGTH )
2 SLOT RISER ( SECONDARY OPTIONAL ):
- SLOT4 PCI-E 3.0 X16 ( CPU2 ) ( FULL HEIGHT, FULL LENGTH )
- SLOT5 PCI-E 3.0 X16 ( CPU2 ) ( FULL HEIGHT, HALF LENGTH )
ADDITIONAL PCI INFORMATION: FLEXIBLE LOM SLOT
