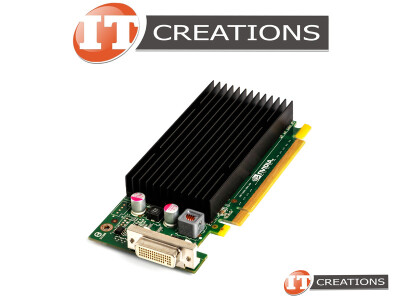

HP NVIDIA NVS 300 GRAPHICS CARD 512MB DDR3 16 CUDA CORES 64 BIT MEMORY INTERFACE 12.6GB/S MEMORY BANDWIDTH PCI-E 2.0 X16 VIDEO CARD (XP612AA-NO BRACKET)

Product Details:

HP / NVIDIA NVS 300 GRAPHICS CARD 512MB DDR3 16 CUDA CORES 64 BIT MEMORY INTERFACE 12.6GB/S MEMORY BANDWIDTH PCI-E 2.0 X16 VIDEO CARD

MANUFACTURER: HP / NVIDIA
PART NUMBER: XP612AA-NO BRACKET

ENGINE SPECS:

CUDA CORES: 16

MEMORY:

MEMORY CONFIGURATION: 512MB
MEMORY INTERFACE: DDR3
MEMORY INTERFACE WIDTH: 64 BIT
MEMORY BANDWIDTH: 12.6GB/S

SUPPORT:

OPENGL ( OPEN GRAPHICS LIBRARY ): 3.3
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
CERTIFIED FOR WINDOWS 7: YES
SUPPORTED TECHNOLOGIES: SHADER MODEL 4.1, OPENGL 3.3, MICROSOFT DIRECTX 10.1, NVIDIA CUDA ARCHITECTURE, AUDIO SUPPORT ( VIA DISPLAYPORT ), INTELLIGENT POWER MANAGEMENT, ULTIMATE IMAGE QUALITY, FANLESS DESIGN,

DISPLAY SUPPORT:

MAXIMUM DIGITAL RESOLUTION AT 60HZ: 2560 X 1600 ( DISPLAYPORT ) 1920 X 1200 ( DVI-I )
MAXIMUM ANALOG RESOLUTION AT 85HZ: 2048 X 1536 ( VGA )
PORT CONNECTIONS:DVI-I ( DMS59 TO DVI-I CABLE ADAPTER ), DISPLAYPORT ( DMS59 TO DISPLAYPORT CABLE ADAPTER ), VGA ( DMS59 TO VGA CABLE ADAPTER )

COOLING SYSTEM:

HEATSINK: ( 1 ) ONE PASSIVE HEATSINK

ADDITIONAL INFORMATION:

GRAPHICS CARD COMES WITH NO BRACKET
