Product Details:

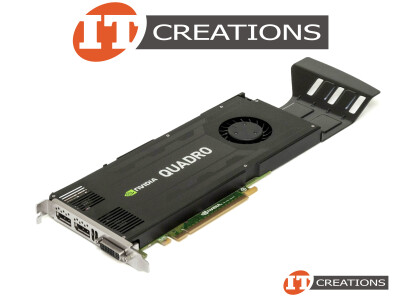

LENOVO NVIDIA QUADRO K4200 GRAPHICS CARD 4GB GDDR5 1344 CUDA CORES 256 BIT MEMORY INTERFACE 173 GB/S MEMORY BANDWIDTH PCI-E 2.0 X16 GRAPHICS PROCESSING UNIT GPU VIDEO CARD
MANUFACTURER: LENOVO / NVIDIA
PART NUMBER: 00FC811
ENGINE SPECS:
CUDA PARALLEL PROCESSOR CORES: 1344
MEMORY:
MEMORY CONFIGURATION: 4GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 173GB/S
SUPPORT:
OPENGL ( OPEN GRAPHICS LIBRARY ): 4.5 ( KHRONOS SPECS )
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
SUPPORTED TECHNOLOGIES: ERROR CORRECTING CODE ECC, OPENGL 4.5, SHADER MODEL 5, DIRECTX 12, NVIDIA 3D VISION PRO, NVIDIA MOSAIC TECHNOLOGY, MULTI DISPLAY QUADRO SYNC, NVIDIA SLI SUPPORT, NVIDIA NVIEW DESKTOP MANAGEMENT TECHNOLOGY, HIGH PERFORMANCE VIDEO I/06, 3-PIN STEREO SUPPORT ( OPTIONAL )
SLI SUPPORT: YES
DISPLAY SUPPORT:
MAXIMUM DP 1.2 RESOLUTION: 3840 X 2160 AT 60HZ
MAXIMUM DVI-I DL RESOLUTION: 2560 X 1600 AT 60HZ
MAXIMUM DVI-I SL RESOLUTION: 1920 X 1200 AT 60HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 AT 85HZ
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 6 PIN
THERMAL AND POWER SPECS:
MAXIMUM GRAPHICS CARD POWER: 108W
COOLING SYSTEM:
HEATSINK: ( 1 ) ONE HEATSINK
FANS: ( 1 ) ONE FAN
