Product Details:

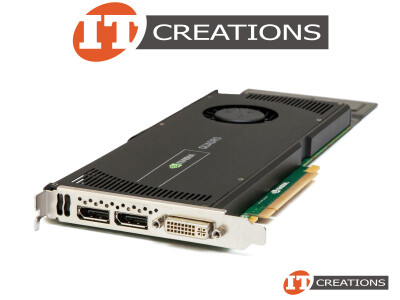

LENOVO NVIDIA QUADRO 4000 GRAPHICS VIDEO CARD 2GB 256 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 89.6GB/S PCI-E 2.0 X16 COOLING SYSTEM ( 1 ) ONE HEATSINK ( 1 ) ONE FAN ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP GRAPHICS PROCESSING UNIT GPU
MANUFACTURER: LENOVO / NVIDIA
PART NUMBER: 89Y8627
ENGINE SPECS:
CUDA CORES: 256
GIGAFLOPS ( SINGLE PRECISION ): 486.4
GIGAFLOPS ( DOUBLE PRECISION ): 243.2
MEMORY:
MEMORY CONFIGURATION: 2GB ( 2048MB )
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 89.6GB/S
SUPPORT:
OPENGL ( OPEN GRAPHICS LIBRARY ): 4.4
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
CERTIFIED FOR WINDOWS 7: YES
SUPPORTED TECHNOLOGIES AND FEATURES: SHADER MODEL 5.0, OPENGL 4.4, MICROSOFT DIRECTX, NVIDIA MULTI OS TECHNOLOGY, NVIDIA CUDA ARCHITECTURE, SDI OPTION, NVIEW DISPLAY MANAGEMENT SOFTWARE, FULL SCENE ANTIALIASING FSAA ( MAXIMUM ) 64X, AUDIO SUPPORT ( VIA DISPLAYPORT ), ENERGYSTAR ENABLING ( WITH 2:1 OR BETTER MAX/IDLE POWER RATIO ), NVIDIA SCALABLE GEOMETRY ENGINE, LARE FRAMEBUFFERS, ULTRA FAST BANDWIDTH, NVIDIA PARALLEL DATACACHE, FAST 64 BIT FLOATING POINT PRECISION, NVIDIA GIGATHREAD ENGINE, FAST 3D TEXTURE TRANSFER, 3D WINDOW CLIPPING, UNIFIED DRIVER ARCHITECTURE UDA, GPU TESSELLATION, 16K TEXTURE, RENDER PROCESSING, NVIDIA HIGH PRECISION HIGH DYNAMIC RANGE HDR TECHNOLOGY, 30 BIT FIDELITY, NVIDIA QUADRO DIGITAL VIDEO PIPELINE, NVIDIA 3D, NVIDIA 3D VISION PRO, OPENGL QUAD BUFFERED STEREO SUPPORT, 3D STEREO SYNCHRONIZATION, PRGRAMMING THE CUDA PARALLEL COMPUTING ARCHITECTURE, CG PROGRAMMING, MICROSOFT WINDOWS 7 SUPPORT, NVIDIA GRAPHICS API EXTENSION, NVIDIA APPLICATION ACCELERATION ENGINES SUPPORT, ULTRA QUIET DESIGN
SLI SUPPORT: YES
DISPLAY SUPPORT:
MAXIMUM DISPLAY RESOLUTION DIGITAL: 2560 X 1600 AT 60HZ
MAXIMUM DUAL LINK DVI-I RESOLUTION: 3840 X 2400 AT 24HZ
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I PORT ( 2 ) TWO DISPLAYPORTS
POWER CONNECTORS: ( 1 ) ONE 6 PIN
THERMAL AND POWER SPECS:
MAXIMUM POWER CONSUMPTION: 142W
COOLING SYSTEM:
HEATSINKS: ( 1 ) ONE PASSIVE HEATSINK
FANS: ( 1 ) ONE FAN
