Product Details:

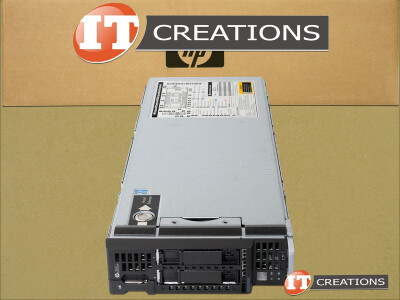

HPE PROLIANT BL460C G9 BLADE 2.5 INCH SFF 2 BAY HPHD HALF HEIGHT SERVER CHASSIS ( GEN9 ) ( FOR BLADESYSTEM C3000 / C7000 ENCLOSURE )
MANUFACTURER: HP
PART NUMBER: HP BL460C G9
COMPATIBILITY: HPE BLADESYSTEM C3000 / C7000 RACK ENCLOSURE
NOTE: THIS MODEL IS A 2.5 INCH SFF 2 BAY STANDARD OPTION ONLY. AN ENCLOSURE IS REQUIRED FOR OPERATING THIS SYSTEM. THIS OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA2011-3
PROCESSOR COMPATIBILITY: INTEL XEON E5-2600V4 PROCESSORS ( BROADWELL ) / INTEL XEON E5-2600V3 PROCESSORS ( HASWELL )
PROCESSOR CORE COUNT: UP TO 22 CORES PER SOCKET
PROCESSOR TDP: UP TO 145W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS ( 8 DIMMs PER PROCESSOR )
MEMORY GENERATION: DDR4
LRDIMM MEMORY SIZE CAPACITY: UP TO 2TB
RDIMM MEMORY SIZE CAPACITY: UP TO 512GB
MEMORY SPEEDS: DDR4-2400MHZ LRDIMM / DDR4-2133 RDIMM ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 4 CHANNELS PER PROCESSOR ( SUPPORTS 2 DIMMS PER CHANNEL )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 2 ) TWO 2.5 INCH SFF HOT PLUG HARD DRIVES
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
MAX STORAGE SIZE:
- 4TB ( SAS HDD )
- 4TB ( SATA HDD )
- 7.68TB ( SAS SSD )
- 7.68TB ( SATA SSD )
- 4TB ( PCIE NVME SSD )
NOTE:
- HPE DRIVES FROM GEN7 SERVERS AND OLDER ARE NOT SUPPORTED WITH THIS SYSTEM
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 2 ) TWO I/O EXPANSION MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 1X16 ( TYPE A ) ( EXPANSION SLOT1 )
- 1X16 ( TYPE B - ALSO SUPPORTS TYPE A ) ( EXPANSION SLOT2 )
NOTE:
- EXPANSION SLOT1 SUPPORTS DUAL PORT MEZZ CARDS: ONE PORT IS ROUTED TO INTERCONNECT MODULE BAY 3 AND THE OTHER TO BAY 4
- EXPANSION SLOT2 SUPPORTS DUAL PORT AND QUAD PORT MEZZ CARDS. FOR DUAL PORT CARDS: ONE PORT IS ROUTED TO INTERCONNECT MODULE BAY 5 AND ONE TO BAY 6. FOUR QUAD PORT MEZZ CARDS: ONE PORT IS ROUTED TO BAY 5, ONE TO BAY 6, ONE TO BAY 7, AND ONE TO BAY 8
- TYPE B EXPANSION SLOT REQUIRES PROCESSOR 2 CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NOTE:
- POWER SOURCE IS GENERATED FROM THE ENCLOSURE. ENCLOSURE IS NOT INCLUDED WITH THIS OPTION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER
- RED HAT ENTERPRISE LINUX SERVER
- SUSE LINUX ENTERPRISE SERVER
- CANONICAL UBUNTU
- ORACLE SOLARIS
- VMWARE
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED OCTOBER 2018 - INFORMATION MAY CHANGE
