Product Details:

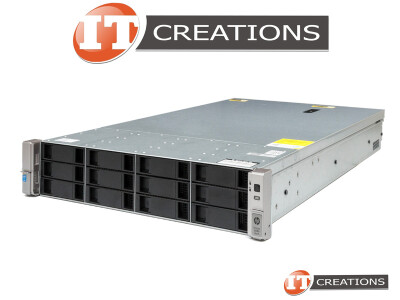

HPE PROLIANT DL380 G9 RACK 3.5 INCH LFF 4 BAY HPHD HPPS 2U SERVER CHASSIS ( GEN9 )
MANUFACTURER: HP
PART NUMBER: HP DL380 G9 3.5 4B
NOTE: THIS MODEL IS A 3.5 INCH LFF 12 BAY SAS / SATA STANDARD OPTION ONLY. IF YOU DESIRE A 2.5 INCH SFF SERVER CHASSIS , PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA2011-3
PROCESSOR COMPATIBILITY: INTEL XEON E5-2600V4 / E5-2600V3 PROCESSORS FAMILY ( BROADWELL / HASWELL )
PROCESSOR CORE COUNT: UP TO 22 CORES PER SOCKET
PROCESSOR TDP: UP TO 160W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS ( 12 DIMMs PER PROCESSOR )
RDIMM MEMORY SIZE CAPACITY: UP TO 3TB LRDIMM / 768GB RDIMM / 128GB NVDIMM
MEMORY SPEEDS: DDR4-2400MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 4 CHANNELS PER PROCESSOR ( 3 DIMMS PER CHANNEL )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 4 ) FOUR 3.5 INCH LFF HOT PLUG HARD DRIVES
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS3 / SATA3
MAX STORAGE SIZE: UP TO 48TB HDD ( SATA / SAS ) OR 15.36TB SSD ( SATA ) OR 7.68TB SSD ( SAS )
NOTE:
- IF YOU DESIRE A 2.5 INCH SFF CHASSIS OR 3.5 INCH LFF 12 BAY CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 6 ) SIX PCI-E SLOTS
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 3X8 FHHL ( 2X16 + 1X8 CONNECTORS ) ( STANDARD PRIMARY RISER1 )
- 2X16 FHFL + 1X8 FHHL ( 2X16 + 1X8 CONNECTORS ) ( OPTIONAL RISER2 )
- 1X16 FHFL + 1X8 FHHL ( 1X16 + 1X8 CONNECTORS ) ( SECONDARY RISER1 )
NOTE:
- SECONDARY RISER REQUIRE 2ND PROCESSOR CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1400W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER
- CANONICAL UBUNTU
- RED HAT ENTERPRISE LINUX ( RHEL )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- ORACLE LINUX AND ORACLE VM
- CITRIX XENSERVER
- CLEAROS ( CLEAR OS )
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED DECEMBER 2019 - INFORMATION MAY CHANGE
