Product Details:

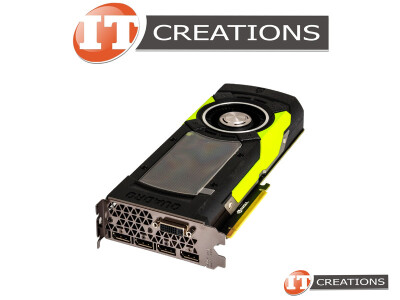

HP NVIDIA QUADRO M6000 24GB MAXWELL GPU 3072 CUDA CORES MEMORY BANDWIDTH 317GB/S GDDR5 MEMORY INTERFACE 384 BIT PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-I ( 4 ) FOUR DISPLAYPORT DP GRAPHIC PROCESSING UNIT VIDEO CARD
MANUFACTURER: HP / NVIDIA
PART NUMBER: 846380-001
ENGINE SPECS:
ENGINE ARCHITECTURE: MAXWELL
CUDA CORES: 3072
GPU CLOCK: 1026 MHZ
BOOST CLOCK: 1152 MHZ
PEAK SINGLE PRECISION PERFORMANCE: 7 TFLOPS ( TERAFLOPS )
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 317 GB/S
MEMORY CLOCK: 1653 MHZ ( EFFECTIVE: 6612 MHZ )
ERROR CORRECTION CODE ( ECC ): DISABLED BY DEFAULT
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: NVIDIA CUDA CORE TECHNOLOGY, SHADER MODEL 5.0, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, DIRECTCOMPUTE, OPENCL, 3D STEREO SUPPORT, NVIDIA GPUDIRECT, QUADRO SYNC COMPATIBLE, NVIDIA NVIEW MULTIDISPLAY TECHNOLOGY, NVIDIA MOSAIC
OPERATING SYSTEM: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX
DISPLAY SUPPORT:
MAXIMUM DP 1.2 RESOLUTION: 4096 X 2160 AT 60HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZ
MAXIMUM DVI-D SL RESOLUTION: 1920 X 1200 AT 60HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 AT 85HZ ( VIA ADAPTER )
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 1 ) ONE SLI INTERFACE ( 1 ) ONE SYNC INTERFACE ( 1 ) ONE 4 PIN STEREO CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 250W
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR
COOLING SYSTEM:
ACTIVE FANSINK
FORM FACTOR:
DUAL SLOT, FULL HEIGHT
