Product Details:

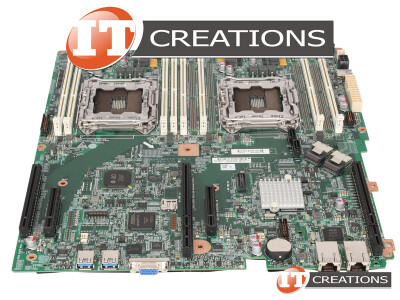

HP MOTHERBOARD FOR HPE PROLIANT DL60 G9 / DL80 G9 ( GEN9 ) - SYSTEM BOARD ( 2 ) TWO CPU SOCKETS ( 8 ) EIGHT DIMM SLOTS
MANUFACTURER: HP
PART NUMBER: 790485-001
COMPATIBILITY: HPE PROLIANT DL60 G9 / DL80 G9 ( GEN9 )
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA2011-3
PROCESSOR TYPE: INTEL XEON E5-2600V3 / E5-2600V4 FAMILY
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 8 TOTAL MEMORY SLOTS ( 4 CHANNELS PER PROCESSOR / 1 DIMM PER CHANNEL )
MEMORY TYPE: UP TO DDR4-2400
MEMORY SIZE CAPACITY: UP TO 256GB LRDIMM / RDIMM
PCI INTERFACE DETAIL VIA DL60 G9
NUMBER OF PCI SLOTS: 5 INTERFACES ( ONBOARD ) ( UP TO 3 SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PCI RISER SLOT:
- SLOT1 PCI-E 3.0 X16 ( LOW PROFILE )
FLEXIBLE LOM RISER OPTION 1:
- SLOT2 PCI-E 3.0 X8 ( LOW PROFILE )
- FLEX LOM PCI-E 3.0 X8
PCI RISER OPTION:
- SLOT2 PCI-E 3.0 X8 ( LOW PROFILE SLOT )
- SLOT3 PCI-E 3.0 X8 ( FULL HEIGHT, HALF LENGTH )
PCI INTERFACE DETAIL VIA DL80 G9
NUMBER OF PCI SLOTS: 5 INTERFACES ( ONBOARD ) / UP TO 6 PCI SLOTS VIA RISER BOARD, RISER CARD NOT INCLUDED WITH SYSTEM BOARD
MOTHERBOARD PCI STANDARD RISER SLOTS:
- SLOT1 PCI-E 3.0 X16 ( LOW PROFILE )
- SLOT3 PCI-E 3.0 X8 ( LOW PROFILE )
- SLOT4 PCI-E 3.0 X16 ( LOW PROFILE )
- SLOT6 PCI-E 3.0 X8 ( LOW PROFILE / CPU2 )
- SLOT7 PCI-E 3.0 X16 ( LOW PROFILE / CPU2 )
PRIMARY RISER ( OPTIONAL ):
- SLOT1 PCI-E 3.0 X8 ( FULL HEIGHT / HALF LENGTH / CPU1 )
- SLOT2 PCI-E 3.0 X8 ( FULL HEIGHT / HALF LENGTH / CPU1 )
FLEXIBLE LOM RISER ( OPTIONAL ):
- SLOT4 PCI-E 3.0 X8 ( LOW PROFILE SLOT )
- SLOT5 PCI-E 3.0 X8 ( FLEX LOM )
GPU RISER ( OPTIONAL ):
- SLOT1 PCI-E 3.0 X16 ( FULL HEIGHT / FULL LENGTH )
