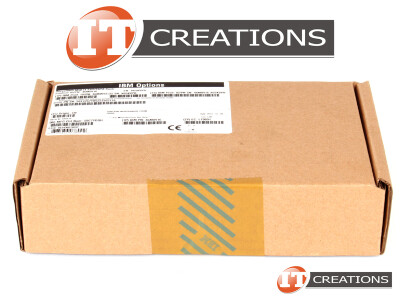

IBM SERVERAID M5014 SAS / SATA CONTROLLER - 256MB ONBOARD CACHE DDR2 800MHZ (46M0916-RETAIL)

Part Number: 46M0916-RETAIL

Condition: Retail

Availability: ETA 3-4 days

Request Pricing
as of 05/15/2026 06:39:00 AM PDT

IT Creations difference:

Free shipping on orders over $99.00* (within the continental US)
Product Details:

IBM SERVERAID M5014 SAS / SATA CONTROLLER - 256MB ONBOARD CACHE DDR2 800MHZ

MANUFACTURER: IBM
PART NUMBER: 46M0916-RETAIL
TRANSFER RATE: 6GB/S
PROTOCOL: SAS / SATA
DENSITY CACHE: 512MB 800MHZ DDR2 SDRAM
DEVICE TYPE: RAID CONTROLLER
INTERFACE: PCI-E 2.0 X8
FORM FACTOR: PCI ADAPTER
RAID LEVELS: 0, 1, 5, 10, 50 ( RAID 6 AND 60 SUPPORTED WITH OPTIONAL M5000 ADVANCED FEATURE KEY )
DEVICES SUPPORTED: 32 ( SAS OR SATA DRIVES )
PORTS: EIGHT PORT ( 8 PORTS / 2X4 INTERNAL )
CONNECTORS: ( 2 ) TWO INTERNAL MINI SAS SFF-8087 CONNECTORS

BRACKET: INCLUDES ( 2 ) TWO BRACKETS - FULL HEIGHT / HIGH PROFILE AND HALF HEIGHT / LOW PROFILE BRACKETS
