Product Details:

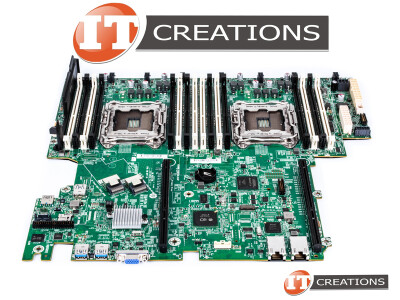

HP MOTHERBOARD FOR HPE PROLIANT DL160 G9 / DL180 G9 ( GEN9 ) - SYSTEM BOARD ( 2 ) TWO FCLGA2011-3 CPU SOCKETS ( COMPATIBLE WITH INTEL XEON E5-2600V3 / E5-2600V4 ) ( 16 ) SIXTEEN DDR4 DIMM SLOTS
MANUFACTURER: HP
PART NUMBER: 743018-003
COMPATIBILITY: HPE PROLIANT DL160 G9 / DL180 G9 ( GEN9 )
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA2011-3
PROCESSOR TYPE: INTEL XEON E5-2600V3 / INTEL XEON E5-2600V4 FAMILY
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 16 TOTAL MEMORY SLOTS ( 8 PER PROCESSOR / 4 CHANNELS PER PROCESSOR )
MEMORY TYPE: UP TO DDR4-2400
MEMORY SIZE CAPACITY: UP TO 1TB LRDIMM OR UP TO 512GB RDIMM
PCI INTERFACE DETAIL VIA DL160 G9
NUMBER OF PCI SLOTS: 2 INTERFACES ( VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER OPTION 1:
- SLOT1 PCI-E 3.0 X16 ( FULL HEIGHT / HALF LENGTH )
- SLOT2 PCI-E 3.0 X8 ( LOW PROFILE )
PRIMARY RISER FLEXIBLE LOM OPTION 2:
- PCI-E 3.0 X8 ( FLEX LOM )
- PCI-E 3.0 X8 ( LOW PROFILE SLOT )
SECONDARY RISER OPTION:
- SLOT1 PCI-E 3.0 X16 ( LOW PROFILE SLOT )
PCI INTERFACE DETAIL VIA DL180 G9
NUMBER OF PCI SLOTS: 2 INTERFACES ( VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )
PRIMARY RISER OPTION 1:
- SLOT1 PCI-E 3.0 X8 ( FULL HEIGHT / FULL LENGTH )
- SLOT2 PCI-E 3.0 X8 ( FULL HEIGHT / HALF LENGTH )
- SLOT3 PCI-E 3.0 X8 ( FULL HEIGHT / HALF LENGTH )
PRIMARY RISER OPTION 2:
- PCI-E 3.0 X16 ( FULL HEIGHT, FULL LENGTH )
- PCI-E 3.0 X8 ( FULL HEIGHT, HALF LENGTH )
FLEXIBLE LOM RISER OPTION:
- SLOT1 PCI-E 3.0 X8 ( FULL HEIGHT / FULL LENGTH )
- SLOT2 PCI-E 3.0 X8 ( FULL HEIGHT / HALF LENGTH )
- FLEX LOM SLOT ( FULL HEIGHT / HALF LENGTH )
