Product Details:

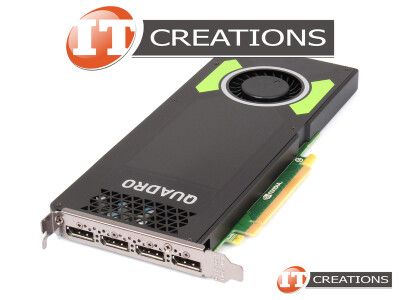

HP NVIDIA QUADRO M4000 MAXWELL GPU 8GB 1664 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 192GB/S PCI-E 3.0 X16 GRAPHICS PROCESSING UNIT VIDEO CARD
MANUFACTURER: HP / NVIDIA
PART NUMBER: M6V52AT
ENGINE SPECS:
CUDA PROCESSOR CORES: 1664
MEMORY:
MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 192GB/S
SUPPORT:
OPENGL ( OPEN GRAPHICS LIBRARY ): 4.5
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.0, OPEN GL 4.5, DIRECTX 12.0, CUDA TECHNOLOGY, DIRECTCOMPUTE, OPENCL, MAXWELL ARCHITECTURE BASED, NVIDIA MOSAIC, HDCP SUPPORT, NVIDIA NVIEW DESKTOP MANAGEMENT SOFTWARE COMPATIBILITY, QUADRO SYNC COMPATIBILITY, NVIDIA GPUDIRECT SUPPORT, 3D STEREO SUPPORT, VGA SUPPORT, DISPLAYPORT WITH AUDIO, PCI EXPRESS 3.0 TECHNOLOGY
DISPLAY SUPPORT:
MULTI MONITOR: 4 DIRECT ( 4 DP 1.2 MULTI STREAM ) ( 4K ) / OR UP TO 2 DISPLAYS ( VIA DUAL DP INPUT CAPABLE ) ( 5K )
MAXIMUM DP 1.2 RESOLUTION: 4096 X 2160 X 30BPP AT 60 HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 X 32BPP AT 85 HZ ( VIA ADAPTER )
MAXIMUM DL DVI-I RESOLUTION: 2560 X 1600 X 32BPP AT 60 HZ ( VIA ADAPTER )
MAXIMUM SL DVI-I RESOLUTION: 1920 X 1200 X 32BPP AT 60 HZ ( VIA ADAPTER )
MAXIMUM DUAL DP INPUT CAPABLE RESOLUTION: 5120 X 2880 ( VIA ADAPTER ) ( 5K DISPLAY )
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS / INTERFACES: ( 1 ) ONE SYNC INTERFACE ( 1 ) ONE SLI INTERFACE ( 1 ) ONE 4 PIN STEREO CONNECTOR
THERMAL AND POWER SPECS:
MAXIMUM POWER CONSUMPTION: 120W
POWER CONNECTORS: ( 1 ) ONE 6 PIN POWER CONNECTOR
COOLING SYSTEM:
( 1 ) ONE ACTIVE FANSINK
