Product Details:

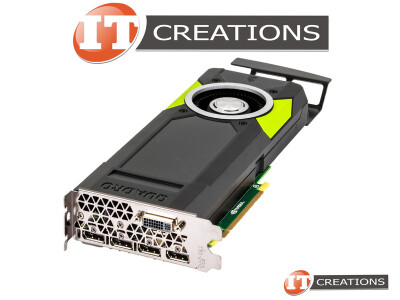

HP NVIDIA QUADRO M5000 MAXWELL GPU 8GB 2048 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 211GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVD-I CONNECTOR ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ( 1 ) ONE SLI CONNECTOR ( 1 ) ONE SYNC CONNECTOR ( 1 ) ONE STEREO 4 PIN ( 1 ) ONE 6 PIN CONNECTOR
MANUFACTURER: HP / NVIDIA
PART NUMBER: 861189-001
ENGINE SPECS:
ENGINE ARCHITECTURE: MAXWELL
CUDA CORES: 2048
GPU CLOCK ( BASE ): 861 MHZ
BOOST CLOCK: 1038 MHZ
FP32 PERFORMANCE: 4 TFLOPS ( TERAFLOPS )
MEMORY:
MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 211 GB/S
MEMORY CLOCK: 1653 MHZ / EFFECTIVE: 6612 MHZ
ERROR CORRECTION CODE ( ECC ): CAPABLE
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA CUDA CORE TECHNOLOGY, SHADER MODEL 5.0, OPENGL 4.5, DIRECTX 12.0, DIRECTCOMPUTE, OPENCL, 3D STEREO SUPPORT, NVIDIA GPUDIRECT SUPPORT, QUAD SYNC COMPATIBLE, NVIDIA NVIEW DESKTOP, HDCP SUPPORT NVIDIA MOSAIC
OPERATING SYSTEM: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX
DISPLAY SUPPORT:
MAXIMUM DP 1.2 RESOLUTION: UP TO 4 DISPLAYS 4096 X 2160 X 30 BPP AT 60HZ ( VIA DISPLAYPORTS DP )
MAXIMUM DP 1.2 RESOLUTION: UP TO 2 DISPLAYS 5120 X 2880 AT 60HZ ( VIA DISPLAYPORTS DP )
MAXIMUM DUAL LINK DVI-I RESOLUTION: 2560 X 1600 X 32 BPP AT 60HZ
MAXIMUM SINGLE LINK DVI-I RESOLUTION: 1920 X 1200 X 32 BPP AT 60HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 X 32 BPP AT 85HZ
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )
HDCP: YES
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVD-I CONNECTOR ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 1 ) ONE SLI CONNECTOR ( 1 ) ONE SYNC CONNECTOR ( 1 ) ONE STEREO 4 PIN
POWER CONNECTORS: ( 1 ) ONE 6 PIN CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 250W
MAX GPU TEMPERATURE ( IN C ): 94
RECOMMENDED SYSTEM POWER ( W ): 600W
COOLING SYSTEM:
ACTIVE FANSINK
FORM FACTOR:
DUAL SLOT, FULL LENGTH, FULL HEIGHT
