Product Details:

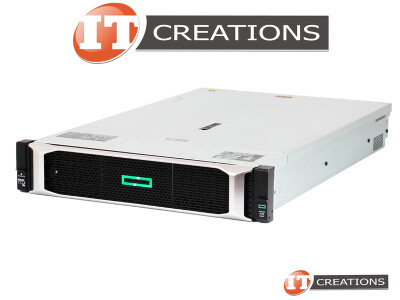

HPE PROLIANT DL385 G10 RACK 2.5 INCH SFF 8 BAY HPHD HPPS 2U SERVER CHASSIS ( GEN10 ) - ( 8B IS STANDARD - 16B / 24B BAYS ARE OPTIONAL 8+8+8 / REAR BAYS ARE OPTIONAL - REAR STORAGE POPULATES RISER SLOTS ) ( CHECK HD BACKPLANE AND CAGES OR BRACKETS FOR AVAILABLE OPTIONS )
MANUFACTURER: HP
PART NUMBER: HP DL385 G10 2.5
NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY STANDARD OPTION ONLY ( UP TO 24 BAY NVME - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF, PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: SP3
PROCESSOR COMPATIBILITY: 2ND GEN AMD EPYC PROCESSOR FAMILY ( ROME 7002 SERIES )
PROCESSOR CORE COUNT: UP TO 64 CORES PER SOCKET
PROCESSOR TDP: UP TO 200W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS ( 16 DIMMs PER PROCESSOR )
LRDIMM MEMORY SIZE CAPACITY: UP TO 4TB ( 1DPC )
RDIMM MEMORY SIZE CAPACITY: UP TO 2TB ( 1DPC )
MEMORY SPEEDS: DDR4-2933MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY IS STANDARD )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
MAX STORAGE SIZE:
- 72TB ( SAS HDD )
- 60TB ( SATA HDD )
- 459TB ( SAS SSD )
- 230.4TB ( SATA SSD )
- 368.64TB ( PCIE NVME SSD )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO FRONT BAYS ( OPTIONAL MEDIA BAY ) / UP TO ( 6 ) SIX 2.5 INCH SFF ( X2 + X2 + X2 OPTIONAL REAR BAYS ) / ( 2 ) TWO M.2 INTERFACE VIA SYSTEM BOARD
NOTE:
- 8+2, 16+2, 24 BAY STORAGE CONFIGURATIONS ALSO AVAILABLE ( A MAX OF 24 NVME SSDs COMPATIBLE WITH 24 BAY OPTION )
- 6 DRIVE OPTION AVAILABLE ( REAR BAY OPTIONS: X2 ON RISER1 + X2 ON RISER2 + X2 ON RISER3 )
- REAR BAY STORAGE INSTALLATION WILL AFFECT EXPANSION SLOTS CAPABILITIES
- ( 2 ) TWO M.2 INTERFACES VIA SYSTEM BOARD
- UFF DRIVES ARE SUPPORTED VIA SYSTEM BOARD
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 8 ) EIGHT SLOTS ( 1 ) ONE FLEXIBLELOM SLOT
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 2X8 + 1X16 ( STANDARD )
- 2X8 + 1X16 ( SECONDARY OPTIONAL )
- 2X8 ( TERTIARY OPTIONAL )
NOTE:
- SECONDARY AND TERTIARY RISERS REQUIRES THE 2ND PROCESSOR CONFIGURATION
- REAR BAY STORAGE INSTALLATION WILL AFFECT EXPANSION SLOTS CAPABILITIES
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
MAX POWER IN WATTAGE: 500W / 800W / 1600W
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
2ND GEN AMD EPYC PROCESSOR FAMILY ( 7002 SERIES ):
- MICROSOFT WINDOWS SERVER 2016: ( MOST RECENT VERSION )
- MICROSOFT WINDOWS SERVER 2019: ( MOST RECENT VERSION )
- VMWARE ESXI 6.5 U3
- VMWARE ESXI 6.7 U3
- RED HAT ENTERPRISE LINUX ( RHEL ): 7.6
- SUSE LINUX ENTERPRISE SERVER ( SLES ): 12 SP4
- SUSE LINUX ENTERPRISE SERVER ( SLES ): 15 SP1
- CITRIX XENSERVER
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED APRIL 2021 - INFORMATION MAY CHANGE
