Product Details:

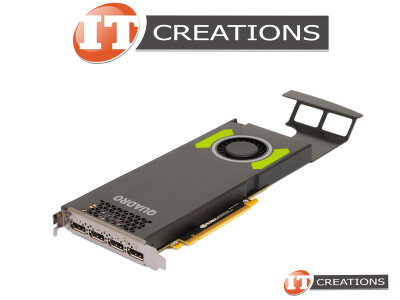

HP NVIDIA QUADRO P4000 PASCAL GPU 8GB 1792 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 243GB/S PCI-E 3.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 4 PIN STEREO CONNECTOR ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR
MANUFACTURER: HP / NVIDIA
PART NUMBER: 1ME40AA
ENGINE SPECS:
ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 1792
GPU CLOCK: 1202 MHZ
BOOST CLOCK: 1480 MHZ
MEMORY:
MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 243 GB/S
MEMORY CLOCK: 1901 MHZ ( EFFECTIVE: 7604 MHZ )
BOOST CLOCK: 1480 MHZ
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC
DISPLAY SUPPORT:
DISPLAY RESOLUTION: 4X 4096 X 2160 AT 120HZ / 4X 5120 X 2880 AT 60HZ
MULTI MONITOR: YES
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 105W
POWER CONNECTORS: ( 1 ) ONE 6 PIN POWER CONNECTOR
COOLING SYSTEM:
( 1 ) ONE ACTIVE FANSINK
DIMENSIONS:
10.5 INCH ( L ) X 4.4 INCH ( H )
