Seagate Exos AP 2U12 Storage Server

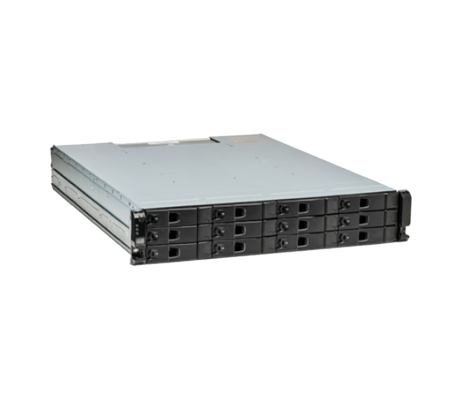

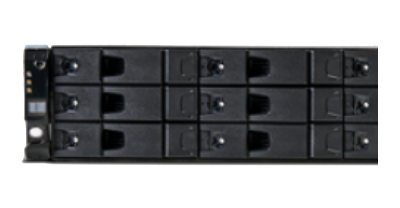

With 12x 3.5-inch drive bays up front, the 2U Seagate Exos AP 2U12 Storage Server can accept either 12x 3.5-inch or 2.5-inch drives. Up to 8x total EBOD chassis can be connected to grow with small to mid-sized businesses in any industry. At full capacity it can support up to 216TB per chassis when using 18TB drives. Single or dual M.2 NVMe SSDs are also available to boot the operating system, with 2x drives providing redundancy. One or 2x AP-BV-1 controllers each support a single 2nd generation AMD EPYC CPU with 8, 12, or 16 cores. Up to 4x DDR4 DIMMs with a maximum of 256GB of RAM and memory rates of up to 3200MHz are supported by each controller. Each controller also features dual ports for 10 or 25GbE I/O.

Seagate Exos AP 2U12 Storage Server - System Overview

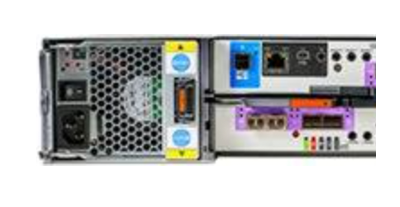

With 216TB of data capacity, the Exos AP 2U12 storage server offers high-performance computing and cutting-edge mass storage in a single system. It delivers data with 7Gb/s reads and 5.5Gb/s writes, plus dual 12Gb/s SAS controllers. Under the hood, there is 1x low-profile, half-length PCIe Gen4 x16 slot and 1x OCP v2.0 Gen4 x8 slot, in addition to dual 12G x4 mini-SAS HD external expansion ports. Dual redundant 764W 80 PLUS Gold or Platinum PSUs are found on the rear of the platform. Seagate Exos AP 2U12 rear of system

Seagate Exos AP 2U12 Storage Server - Specifications

Controllers

One or two AP-BV-1 Controllers, redundancy optional

CPU

AMD SP3 7292P EPYC CPU (8,12,16 Core)

Memory

4 x DDR4 - 3200MHz DIMM slots - 8, 16,32,64GB DIMM support

Internal Boot Drive

Single or Dual M.2 NVMe SSD for Redundant Boot/Logs

Onboard I/O

On-board Mellanox CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management / Data)

PCIe Expansion

One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot

Storage Infrastructure

Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports

Inter-Controller Link

PCI Express Gen 3 x16 NTB Inter-controller Interface

Redundant Path

Yes (SAS only)

Management/Status Reporting

Redfish API + IPMI & SES

Device Support

12Gb/s SAS drives and 6Gb/s SATA drives

Max Drives per Enclosure

Up to 12× 3.5-in LFF or 2.5-in SFF drives (in 3.5-in conversion carrier)
For a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

HDDs and SSDs (in chassis data slots), power supply units (PSU), cooling modules, and controllers

Physical

Power Requirements-AC Input

100V-240V AC 60Hz/50Hz

Ma Power Output per PSU:

764W
