Seagate Exos AP 2U24 Storage Server

Outfitted with 2x controllers for redundancy or standalone server nodes, the 2U Seagate Exos AP 2U24 Storage Server offers a compact storage solution compatible with Seagate’s other storage enclosure products. It features 24x 2.5-inch storage bays up front with dual x86 controllers powered by 8, 12, or 16 cores AMD EPYC SP3 7292P CPUs. Single or dual M.2 SSDs can be used to boot the system and provide redundancy with 2x installed. Each controller features dual port 10/25GbE I/O, plus a 12G SAS controller and mini-SAS HD external expansion ports.

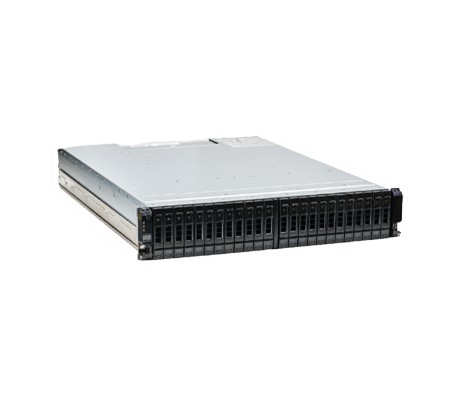

Seagate Exos AP 2U24 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos AP 2U24 Storage Server - System Overview

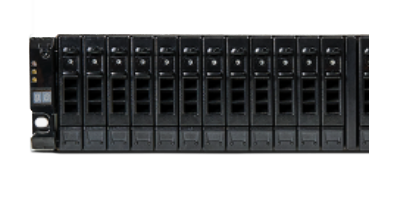

Seagate Exos AP 2U24 front of system

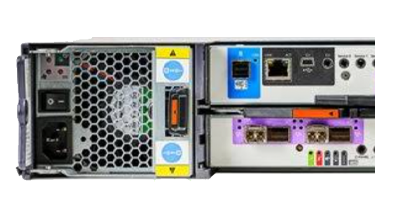

Designed for use as a cost-effective scalable platform, the Seagate Exos AP 2U24 Storage Server is used for high-bandwidth, low-latency environments, plus medical offices, surveillance and image sequence processing. There are several other Exos AP storage servers offering the same performance with 12x, 84x, or 106x storage bays to choose from depending on your business needs. With the modular design it is easy to service and scale with various Exos products. A single low-profile PCIe gen 4.0 slot on the system board, and one OCP 2.0 Gen 4 x8 host interface slot, provide options for network connectivity including 10GbE, 25GbE, and 100GbE. Seagate Exos AP 2U24 rear of system

Seagate Exos AP 2U24 Storage Server - Specifications

Controllers

    One or two AP-BV-1 Controllers, redundancy optional

CPU

  • AMD SP3 7292P EPYC CPU (8,12,16 Core)

Memory

  • 4 x DDR4 - 3200MHz DIMM slots - 8, 16,32,64GB DIMM support

Internal Boot Drive

  • Single or Dual M.2 NVMe SSD for Redundant Boot/Logs

Onboard I/O

  • On-board Mellanox CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management / Data)

PCIe Expansion

  • One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot

Storage Infrastructure

  • Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports

Inter-Controller Link

  • PCI Express Gen 3 x16 NTB Inter-controller Interface

Redundant Path

  • Yes (SAS only)

Management/Status Reporting

  • Redfish API + IPMI & SES

Device Support

  • 12Gb/s SAS drives and 6Gb/s SATA drives

Max Drives per Enclosure

  • Up to 24x 2.5-in SFF drives
  • For a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

  • SSDs (in chassis data slots), power supply and cooling modules units (PCU), controllers

Physical

    Height: 87.9mm / 3.46 in
    Width: 443mm / 17.44
    Width (w/ear mounts): 483mm / 19.01 in
    Depth: 630mm / 24.8 in
    Weight: 17kg / 38 lb
    Weight (with drives): 30kg / 66 lb

Power Requirements-AC Input

    Input Power Requirements:

  • 100V-240V AC 60Hz/50Hz

    • Ma Power Output per PSU:

  • 764W

Seagate Exos AP 2U24 Storage Server - Documentation

Seagate Exos AP 2U24 Data Sheet Seagate Exos 2U and 5U Rackmount Guide Seagate Exos AP 2U24 Hardware Installation and Maintenance Guide
