Seagate Exos AP 5U84 Storage Server

At 5U the Seagate Exos AP 5U84 Storage Server can host up to 84x 3.5-inch or 2.5-inch drives for up to 1.344 petabytes of storage. The system can be outfitted with 1x or 2x AP-BV-1 controllers, with 2x controllers installed for redundancy. Each controller supports a single AMD EPYC CPU with 8, 12, or 16 cores along with up to 256GB of DDR4 memory supporting memory speeds of up to 3200MHz. With dual controllers, the system can be split into two nodes for multi-node architecture in a single chassis.

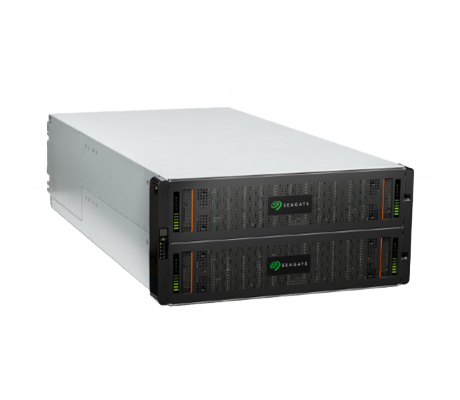

Seagate Exos AP 5U84 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos AP 5U84 Storage Server - System Overview

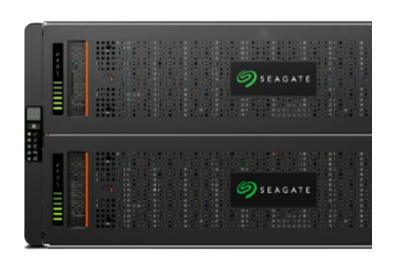

Seagate Exos AP 5U84 front of system

The Seagate Exos AP 5U84 Storage Server at up to 1.344 PB of data leads the industry in both density and cost-for-performance. It can be outfitted with EBOD expansion controllers or hardware-based RAID controllers offering more data protection for high-capacity or transaction-dependent environments. With integrated compute and massive storage capacity, this system is an excellent choice for larger data center applications. Adding to the reliability, is compatibility with Seagate Secure SSDs and hard drives. offering modular and interchangeable components, this system can be easily upgraded to support new technologies. Each of the controllers has a single low-profile, half-length PCIe 4.0 x16 host interface and a PCIe 4.0 x8 OCP host interface card slot. Power is provided by dual 2200W PSUs. Seagate Exos AP 5U84 rear of system

Seagate Exos AP 5U84 Storage Server - Specifications

Controllers

    One or two AP-BV-1 Controllers, redundancy optional

CPU

  • AMD SP3 7292P EPYC CPU (8,12,16 Core)

Memory

  • 4 x DDR4 - 3200MHz DIMM slots - 8, 16,32,64GB DIMM support

Internal Boot Drive

  • Single or Dual M.2 NVMe SSD for Redundant Boot/Logs

Onboard I/O

  • On-board Mellanox CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management / Data)

PCIe Expansion

  • One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot

Storage Infrastructure

  • Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports

Inter-Controller Link

  • PCI Express Gen 3 x16 NTB Inter-controller Interface

Host/Expansion Interface

  • Two ×4 mini-SAS HD Expansion I/O connectors

Management/Status Reporting

  • Redfish API + IPMI & SES

Device Support

  • 12Gb/s SAS drives

Max Drives per Enclosure

  • 84 × 3.5-in LFF drive slots (for a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

  • HDDs and SSDs (in chassis data slots), power supply units (PSU), cooling modules, side-plane expanders, and controllers

Physical

    Height: 220mm / 8.65 in (5 EIA units)
    Width: 483mm / 19 in (IEC rack compliant)
    Depth: 933mm / 36.75 in
    Weight: 135kg / 298 lb (with drives, no rail kit)

Power Requirements-AC Input

    Input Power Requirements:

  • 200VAC-240VAC, 50Hz/60Hz

    • Ma Power Output per PSU:

  • 2200W

Seagate Exos AP 5U84 Storage Server - Documentation
