Seagate Exos E 2U12 Storage Enclosure

With two controllers, the Seagate Exos E 2U12 storage enclosure offers a SAS3 drive interface with a throughput of up to 28.8GB/s, or 14.4GB/s with just one controller. Using the 12x front 3.5-inch drive bays, the system can store up to 216TB using 18TB 3.5-inch SAS drives. Up to 12x extended bunch of disks (EBOD) chassis can be combined for up to 144 SSDs and hard drives.

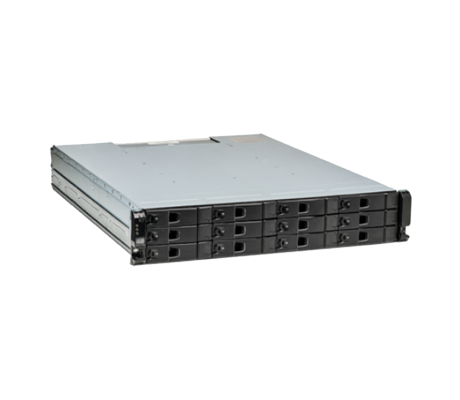

Seagate Exos E 2U12 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos E 2U12 Storage Enclosure - System Overview

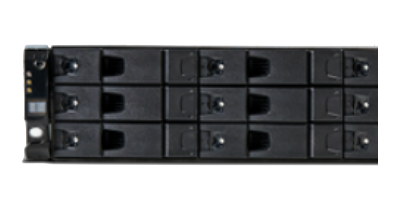

Seagate Exos E 2U12 front of system

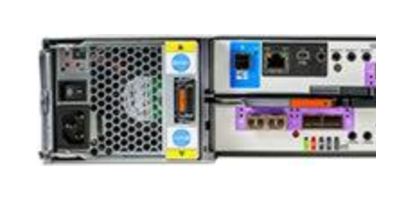

The Exos E 2U12 offers up to three x4 12Gb/s mini-SAS HD connectors per I/O module. This system features EBOD capabilities, allowing administrators to simply increase the amount of storage when necessary. This modular system offers excellent expansion at an affordable price and is suitable for applications involving backup and recovery, video surveillance, high-performance computing, and big data. The management interface supports 2x 1GbE ports on the rear of the chassis where you can also find the dual redundant 580W 80 PLUS Gold or Platinum PSUs to power the system. Seagate Exos E 2U12 rear of system

Seagate Exos E 2U12 Storage Enclosure - Specifications

Controllers

  • Controller: Dual I/O modules per enclosure
  • 3x universal ×4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module

Management/Status Reporting

  • CLI via RS232 and 100Base-T port SES via SAS SFF-8644 ports

Maximum System Configuration

  • Dual host-connected enclosure with a maximum expanded configuration of 12 enclosures for a total of 144 drives

Device Support

  • Dual port 12Gb/s and 6Gb/s SAS drives

Max Drives per Enclosure

  • 12 (for a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

  • Drives, power cooling modules (PCM), and SBB I/O modules

Physical

    Height: 88.9mm / 3.5 in (2 EIA units)
    Width: 483mm / 19 in (IEC rack compliant)
    Depth: 630mm / 24.8 in
    Weight: 26kg / 52.7 lb (with drives)

Power Requirements-AC Input

    Input Power Requirements:

  • 90VAC-264VAC, 50Hz/60Hz

    • Max Power Output per PSU:

  • 580W

Seagate Exos E 2U12 Storage Enclosure - Documentation

Seagate Exos E 2U12 Data Sheet Seagate Exos E 2U12 Hardware Installation and Maintenance Guide Seagate Exos E 2U and 5U Rackmount Guide
