Seagate Exos E 2U24 Storage Enclosure

Seagate Exos E storage enclosures deliver a modern SAS-3 interface with throughput of up to 28.8GB/s using dual controllers, or half that with a single controller. This appliance uses Seagate’s latest storage drives, plus dual PCMs and dual data paths to all drives for speed and continuous up-time. The 2U Seagate Exos E 2U24 features 24x 2.5-inch drive bays up front for a capacity of up to 57.6TB of storage, per chassis, using 2.4TB 2.5-inch SAS drives.
Seagate Exos X 2U24 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos E 2U24 Storage Enclosure - System Overview

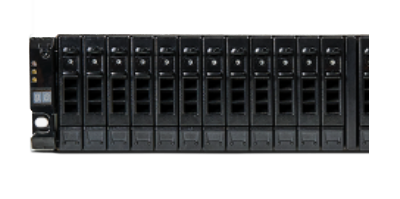

Seagate Exos E 2U24 front of system

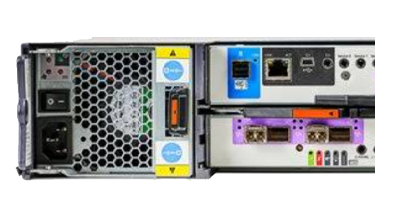

With speed of data transfers defined by controllers housed in the host interface, the Seagate Exos E 2U24 can have up to three x4 12Gb/s mini-SAS HD connectors per I/O module. With the ability to attach up to 6 enclosures, this system offers extended bunch of disks (EBOD) capabilities allowing Administrators to easily increase storage capacity as needed. Management is through 2x 1GbE connectors. This system is a key building block for modular systems and is ideal for use in backup and recovery plus big data, video surveillance and high-performance computing applications. The system is powered by dual redundant 580W 80 PLUS Gold or 80 PLUS Platinum PSUs. Seagate Exos E 2U24 rear of system

Seagate Exos E 2U24 Storage Enclosure - Specifications

Controllers

    Dual I/O modules per enclosure

Host/Expansion Interface

  • 3x universal ×4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module

Management/Status Reporting

  • CLI via RS232 and 100Base-T port SES via SAS SFF-8644 ports

Maximum System Configuration

  • 10 total enclosures including master

Device Support

  • Dual-port 12Gb/s and 6Gb/s SAS drives

Max Drives per Enclosure

  • 24 (for a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

  • Drives, power cooling modules (PCM), and SBB I/O modules

Physical

    Height: 88.9mm / 3.5 in (2 EIA units)
    Width: 483mm / 19 in (IEC rack compliant)
    Depth: 630mm / 24.8 in
    Weight with Drives: 24kg / 53 lb

Power Requirements-AC Input

    Input Power Requirements:

  • 90VAC-264VAC, 50Hz/60Hz

    • Ma Power Output per PSU:

  • 580W

Seagate Exos E 2U24 Storage Enclosure - Documentation

Seagate Exos E 2U24 Data Sheet Seagate Exos E 2U24 Hardware Installation and Maintenance Guide Seagate Exos E 2U and 5U Rackmount Guide
