Seagate Exos E 4U106 Storage Enclosure - System Overview

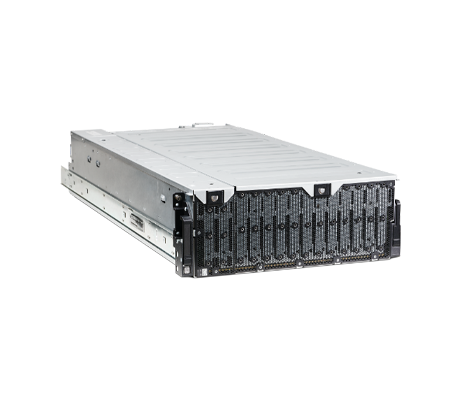

Seagate Exos E 4U106 front of system

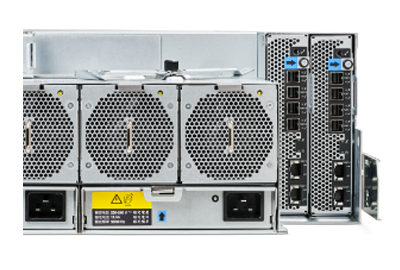

With an overall maximum bandwidth of 36GB/s, you can access mission-critical and archival data with lightning speed. While cutting-edge drive placement improves airflow and lowers power consumption, special performance, efficiency, and scalability characteristics enable an incredibly low TCO. Due to its modular design, the Exos E 4U106 enclosure excels in dependability, simplicity of installation, maintenance, and extension thanks to hot-swappable expanders, dual data routes, redundant I/O modules, fans, and power supply, among other features. This enclosure is appropriate for demanding data retention needs that are predicted to increase in the years to come. There are four x4 12Gb/s mini-SAS HD connectors per I/O module, dual redundant 2000W 80 PLUS Platinum or Titanium PSUs, and 2x 1GbE ports to manage the system. Seagate Exos E 4U106 rear of system

Seagate Exos E 4U106 Storage Enclosure - Specifications

Redundant Path

  • Yes (SAS only)

Host/Expansion I/O Ports

  • Four ×4 mini-SAS HD Expansion I/O connectors per I/O module

Management/Status Reporting

  • In-band SCSI Enclosure Services

Device Support

  • 12Gb/s SAS drives (contact your account or sales manager about 6Gb/s SATA)

Max Drives per Enclosure

  • 106 (for a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

  • Hard drives, power supply units (PSUs), cooling modules, side-plane expanders, and I/O modules

Physical

    Height (with top cover): 176.4mm / 6.95 in
    Width (without ears and rails): 441mm / 17.4 in
    Depth (with handles, without cables): 1139mm / 44.8 in
    Weight: 45kg / 99 lb
    Weight (with drives): 141kg / 310 lb

Power Requirements-AC Input

    Input Power Requirements:

  • 200VAC-240VAC, 50Hz/60Hz
  • Max Power Output per PSU:

  • 2200W

Seagate Exos E 4U106 Storage Enclosure - Documentation
