Seagate Exos E 5U84 Storage Enclosure

The Seagate Exos E 5U84 storage enclosure features 84x 3.5-inch drive bays. With 4x enclosures daisy-chained together, up to 336 drives are supported. These drives are designed to work and perform consistently in enterprise-class applications and workloads. The storage enclosure features two controllers with a SAS3 interface and a throughput of up to 14.4GB/s with just one controller, and double the amount with two controllers. Up to 1.5PB of data can be stored using 18TB 3.5” SAS drives in all bays.

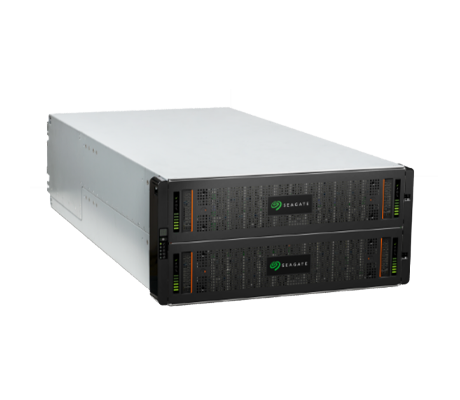

Seagate Exos E 5U84 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos E 5U84 Storage Enclosure - System Overview

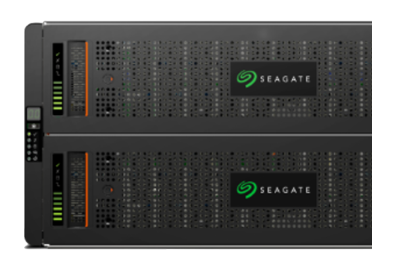

Seagate Exos E 5U84 front of system

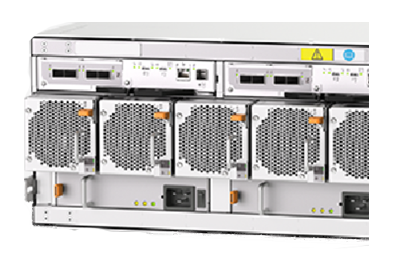

Ideal for edge storage, backup and recovery, multi cloud, private cloud, and big data analytics, the Exos E 5U84 storage enclosure can handle extreme data growth. Each I/O module can accommodate up to three x4 12Gb/s mini-SAS HD ports. The extended bunch of disks (EBOD) capabilities of this system make it easy for users to add more storage as needed. On the back of the chassis, where you can also find the dual redundant 2200W 80 PLUS Platinum or Titanium PSUs to power the system, is the administration interface, which supports 2x 1GbE ports. Seagate Exos E 5U84 rear of system

Seagate Exos E 5U84 Storage Enclosure - Specifications

Controllers

  • Controller: Dual EBOD storage bridge bay (SBB) 2.1 compatible I/O modules per enclosure
  • 3x universal ×4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module

Management/Status Reporting

  • CLI via RS232 and 100Base-T port SES via SAS SFF-8644 ports

Maximum System Configuration

  • Dual host-connected enclosure with a maximum expanded configuration of 4 enclosures for a total of 336 drives

Device Support

  • Dual port 12Gb/s SAS drives

Max Drives per Enclosure

  • 84 (for a full list of supported drives, please contact your account or sales manager)

Hot-Swappable Components

  • Drives, power cooling modules (PCM), and SBB I/O modules

Physical

    Height: 220mm / 8.65 in (5 EIA units)
    Width: 483mm / 19 in (IEC rack compliant)
    Depth: 933mm / 36.75 in
    Weight: 135kg / 298 lb (with drives, no rail kit)

Power Requirements-AC Input

    Input Power Requirements:

  • 180VAC-240VAC, 50Hz/60Hz

    • Max Power Output per PSU:

  • 2200W

Seagate Exos E 5U84 Storage Enclosure - Documentation

Seagate Exos E 5U84 Data Sheet Seagate Exos E 5U84 Hardware Installation and Maintenance Guide Seagate Exos E 2U and 5U Rackmount Guide
