Seagate Exos X 2U12 Advanced Storage Array

The Seagate Exos X 2U12 advanced storage array delivers incredibly effective mass-capacity storage for traditional data centers and cloud architecture. This is a petabyte-scale enclosure with Autonomous Drive Regeneration (ADR) self-healing technology, superior data security, and software value. At 2U, the system supports up to 12x SSDs or HDD drives with either 2.5” or 3.5” form factors and SAS or NL-SAS configurations. It is an ideal storage option for businesses that require more room to save data because Administrators can connect 10 enclosures for a total of 120 drives. Based on 2x Seagate 4006 VELOSCT controllers per enclosure the platform supports up to 12GB/s read throughput, 10GB/s write throughput, and 725K IOPS.

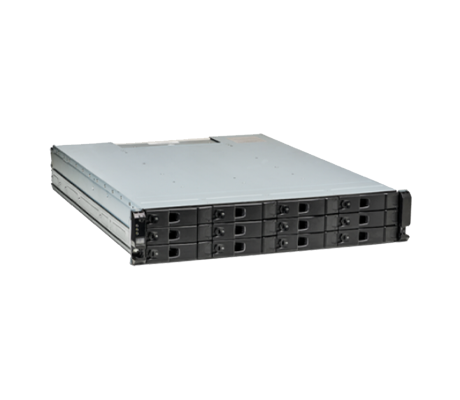

Seagate Exos X 2U12 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos X 2U12 Advanced Storage Array - System Overview

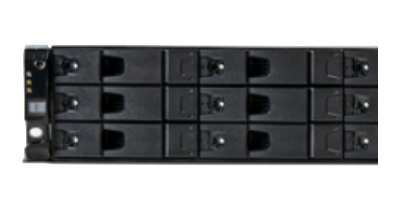

Seagate Exos X 2U12 front of system

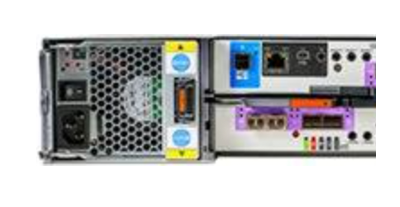

Powered by two redundant 580W hot-swap PSUs, the system delivers 48GB system memory per system with 1024 volumes per system, making it the industry standard for storage managers wanting administration simplicity, petabyte capacity, advanced functionality, and data protection solutions. The memory offers a mirror cache, supercapacitor cache backup, and a nonvolatile cache backup to flash. Ideal for high-performance compute, video surveillance, big data analytics, plus backup and recovery, the Exos X 2U12 server features a 10GBASE-T Ethernet, fibre channel, iSCUSI, and SAS models and 4x external ports per controller for a total of 8x per system. Seagate Exos X 2U12 rear of system

Seagate Exos X 2U12 Advanced Storage Array - Specifications

Controllers

  • Seagate 4006 VELOSCT (2 per enclosure)
  • Up to 12GB/s read throughput
  • Up to 10GB/s write throughput
  • 725K IOPS (Random Read)

Advanced Software Features

  • Auto-Tiering
  • Snapshots
  • Asynchronous Replication

High-Availability Features

  • Redundant hot-swap controllers
  • Redundant hot-swap drives, fans, power
  • Dual power cords
  • Hot standby spare
  • Automatic failover
  • Multi-path support

Device Support

  • SAS HDD, NL-SAS HDD, SAS SSD (2.5 or 3.5 Form Factors)

Data Protection

  • Seagate ADAPT
  • RAID levels supported: 0, 1, 5, 6, 10

Self Healing Technology

  • Autonomous Drive Regeneration (ADR)

System Maximum Expansion

  • 2U12 Arrays, Up to 12 drives per enclosure, 10 enclosures maximum including the master, totaling 120 Drives

Physical

    Height: 87.9mm / 3.46 in
    Width: 443mm / 17.44 in
    Depth: 630mm / 24.8 in
    Weight: 17kg / 38 lb
    Weight with Drives: 30kg / 66 lb

Hosts

    External Ports:

  • 4 per controller, 8 per system

    • Fibre Channel Models:

  • Host speed: 32/16 Gb/s Fibre Channel, Interface type: SFP+/SFP28

    • iSCSI:

  • Host speed: 10Gb/s, 25Gb/s iSCSI, Interface type: SFP+/SFP28

    • SAS Models:

  • Host speed: 12Gb/s, 6Gb/s SAS | Interface type: HD Mini-SAS

System Configuration

    System Memory:

  • 48GB per system

    • Volumes per System:

  • 1024

    • Cache:

  • Mirrored cache, Supercapacitor cache backup, Cache backup to flash – nonvolatile

Management

    Interface Types:

  • 10/100/1000 Ethernet, Micro USB

    • Protocols Supported:

  • SNMP, SSL, SSH, SMTP, HTTP(S), Redfish

    • Management Consoles:

  • Web-based GUI or Command Line Interface (CLI)

    • Management Software:

  • Seagate Systems storage management console
  • Volume expansion
  • Remote diagnostics
  • Non-disruptive Updates

Power Requirements-AC Input

    Input Power Requirements:

  • 100VAC-240VAC, 50Hz/60Hz

    • Max Power Output per PSU:

  • 580W

Seagate Exos X 2U12 Advanced Storage Array - Documentation

Seagate Exos X 2U12 Data Sheet Seagate Exos 2U and 5U Rackmount Guide Seagate Exos X 4006 Series Getting Started Seagate Exos X 4006 Series Hardware Installation and Maintenace Guide
