Seagate Exos X 2U24 Advanced Storage Array

Offering petabytes of storage in a rack-mounted block storage system, the Seagate Exos X 2U24 Advanced Storage Array offers self-healing technology, along with advanced data protection and advanced software features. Advanced Distributed Autonomic Protection Technology (ADAPT) coupled with Autonomous Drive Regeneration (ADR) forms the basis of Seagate’s self-healing storage technology. With modular components that are interchangeable between systems, the system is easy to setup, maintain, and expand.

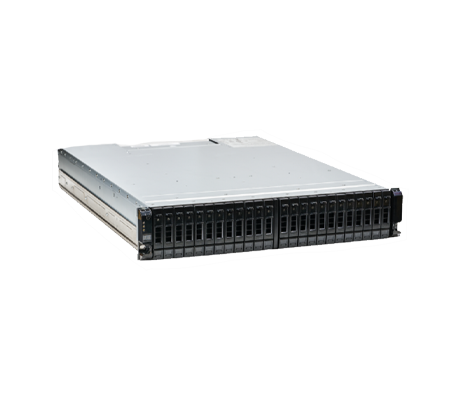

Seagate Exos X 2U24 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos X 2U24 Advanced Storage Array - System Overview

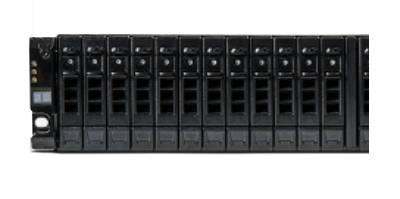

Seagate Exos X 2U24 front of system

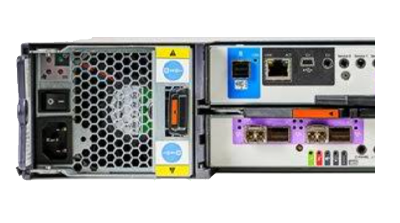

The Seagate Exos X 2U24 Advanced Storage Array is a 2U appliance designed for cloud data centers and conventional data centers and supports 24 drives per chassis to help effectively manage hot and cold data with real-time data tiering. Built to provide exceptional data storage and maximize capacity, up to 10x Exos X 2U24 chassis can be connected to provide up to 240 drive bays. Depending on how the system is outfitted, there are various options for network connections for support of fiber channel models, ISCSI models, Ethernet, SAS models. Basic ports include 4x ports per controller, for 8x ports system wide. 48GB of memory is provided along with mirrored cache, supercapacitor cache backup, and cache backup to flash. The Seagate Systems Storage Management Console provides remote diagnostics, plus nondisruptive updates and volume expansion along with the ADAPT and ADR self-healing storage technology for data resiliency. The system is powered by dual redundant 580W 80 PLUS Gold or Platinum PSUs. Seagate Exos X 2U24 rear of system

Seagate Exos X 2U24 Advanced Storage Array - Specifications

Controllers

  • Seagate 4006 VELOSCT (2 per enclosure)
  • Up to 12GB/s read throughput
  • Up to 10GB/s write throughput
  • 725K IOPS (Random Read)

Advanced Software Features

  • Auto-Tiering
  • Snapshots
  • Asynchronous Replication

High-Availability Features

  • Redundant hot-swap controllers
  • Redundant hot-swap drives, fans, power
  • Dual power cords
  • Hot standby spare
  • Automatic failover
  • Multi-path support

Device Support

  • SAS HDD, NL-SAS HDD, SAS SSD (2.5 or 3.5 Form Factors)

Data Protection

  • Seagate ADAPT
  • RAID levels supported: 0, 1, 5, 6, 10

Self Healing Technology

  • Autonomous Drive Regeneration (ADR)

System Maximum Expansion

  • 2U24 Arrays, Up to 24 drives per enclosure, 10 enclosures maximum including the master, totaling 240 Drives

Physical

    Height: 87.9mm / 3.46 in
    Width: 443mm / 17.44 in
    Depth: 630mm / 24.8 in
    Weight: 17kg / 38 lb
    Weight with Drives: 30kg / 66 lb

Hosts

    External Ports:

  • 4 per controller, 8 per system

    • Fibre Channel Models:

  • Host speed: 32/16 Gb/s Fibre Channel, Interface type: SFP+/SFP28

    • iSCSI:

  • Host speed: 10Gb/s, 25Gb/s iSCSI, Interface type: SFP+/SFP28

    • SAS Models:

  • Host speed: 12Gb/s, 6Gb/s SAS | Interface type: HD Mini-SAS

System Configuration

    System Memory:

  • 48GB per system

    • Volumes per System:

  • 1024

    • Cache:

  • Mirrored cache, Supercapacitor cache backup, Cache backup to flash – nonvolatile

Management

    Interface Types:

  • 10/100/1000 Ethernet, Micro USB

    • Protocols Supported:

  • SNMP, SSL, SSH, SMTP, HTTP(S), Redfish

    • Management Consoles:

  • Web-based GUI or Command Line Interface (CLI)

    • Management Software:

  • Seagate Systems storage management console
  • Volume expansion
  • Remote diagnostics
  • Non-disruptive Updates

Power Requirements-AC Input

    Input Power Requirements:

  • 100VAC-240VAC, 50Hz/60Hz

    • Ma Power Output per PSU:

  • 580W

Seagate Exos X 2U24 Advanced Storage Array - Documentation

Seagate Exos X 2U24 Data Sheet Seagate Exos 2U and 5U Rackmount Guide Seagate Exos X 4006 Series Getting Started Seagate Exos X 4006 Series Hardware Installation and Maintenace Guide
