Seagate Exos X 5U84 Advanced Storage Array

Featuring Seagate’s self-healing technology, the rack-mounted block storage Seagate Exos X 5U84 Storage Array can deliver petabytes of secure storage for demanding streaming environments that require high-speed read and write throughput. It can store up to 1.1 Petabytes in a single 5U enclosure offering 7GB/s sequential read and 5.5GB/s sequential write. Each enclosure can be outfitted with up to 84 HDDs or SSDs. Up to 4 enclosures can be linked together for up to 336 drives maximum.

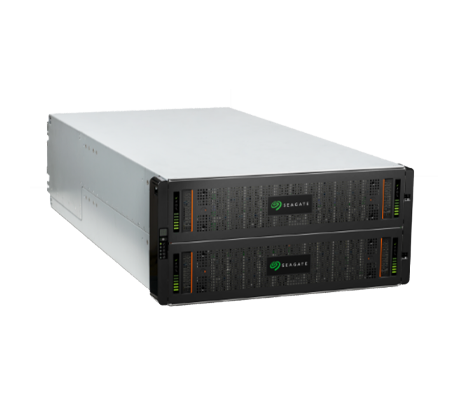

Seagate Exos X 5U84 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Seagate Exos X 5U84 Advanced Storage Array - System Overview

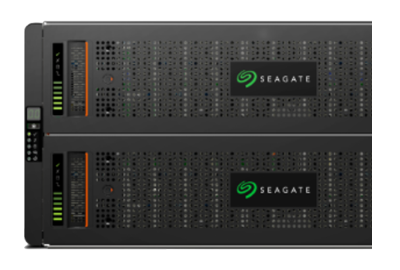

Seagate Exos X 5U84 front of system

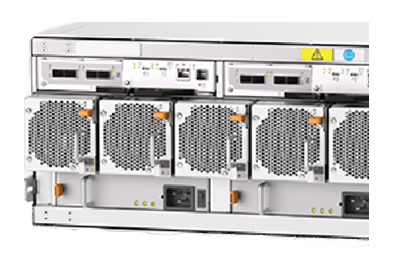

Using Seagate’s Advanced Distribution Autonomic Protection Technology (ADAPT) and Autonomous Drive Regeneration (ADR), the Seagate Exos X 5U84 delivers self-healing capabilities. The platform features auto-tiering for hot and cold data storage, plus snapshots, replication, and new to Seagate ASIC-based VelowCT controller architecture offering both performance and reliability. The system has 4 host ports per controller or 8x per system with redundancy offering SFP+/SFP28 or mini-SAS HD. Interface options include Fiber Channel, iSCSI, and SAS models, plus 10G Base-T Auto depending on your business needs. A full range of RAID options are supported including NRAID (JBOD). To manage the system, there is the Seagate Systems Storage Management Console offering remote diagnostics, nondisruptive updates and Volume Expansion. Seagate Exos X 5U84 rear of system

Seagate Exos X 5U84 Advanced Storage Array - Specifications

Controllers

  • 4005 Controller Performance
  • 7GB/s read throughput
  • 5.5GB/s write throughput

Expansion BODs

  • J1284 (5U84) | Maximum of 3× 5U84 EBODs

High-Availability Features

  • Redundant hot-swap controllers
  • Redundant hot-swap drives, fans, power
  • Dual power cords
  • Hot standby spare
  • Automatic failover
  • Multi-path support

Device Support

  • SAS HDD | NL-SAS HDD | SAS SSD

Data Protection

  • Seagate ADAPT
  • RAID levels supported: 0, 1, 3, 5, 6, 10, and 50

System Configuration

  • Up to 84x drives per chassis (3.5-in devices)
  • 1176TB max capacity per chassis (based on 14TB HDDs)

Physical

    Height: 222.3mm / 8.75 in
    Width: 444.5mm / 17.5 in
    Depth: 981mm / 38.63 in
    RBOD Weight: 82kg / 180 lb
    RBOD Weight with Drives: 135kg / 298 lb
    EBOD Weight: 80kg / 175 lb
    EBOD Weight with Drives: 130kg / 287 lb

Hosts

    External Ports:

  • 8 per system

    • Fibre Channel Models:

  • Host speed: 16Gb/s, 8Gb/s Fibre Channel | Interface type: SFP+

    • iSCSI:

  • Host speed: 10Gb/s, 1Gb/s iSCSI | Interface type: SFP+

    • SAS Models:

  • Host speed: 12Gb/s, 6Gb/s SAS | Interface type: HD Mini-SAS

System Configuration

    System Memory:

  • 16GB per system

    • Volumes per System:

  • 1024

    • Cache:

  • Mirrored cache: Yes | Supercapacitor cache backup: Yes | Cache backup to flash: Yes – nonvolatile

Management

    Interface Types:

  • 10/100/1000 Ethernet, Mini USB

    • Protocols Supported:

  • SNMP, SSL, SSH, SMTP, HTTP(S)

    • Management Consoles:

  • Web-based GUI or Command Line Interface (CLI)

    • Management Software:

  • Seagate Systems storage management console
  • Volume expansion
  • Remote diagnostics
  • Non-disruptive Updates

Power Requirements-AC Input

    Input Power Requirements:

  • 200V-240V AC 50Hz/60Hz (1047W maximum continuous)

    • Heat Dissipation:

  • 3572 BTUs/hour | Platinum-rated power supplies

Seagate Exos X 5U84 Advanced Storage Array - Documentation

Seagate Exos X 5U84 Data Sheet Seagate 5005/4005 Series Storage Management Guide Seagate Exos 2U and 5U Rackmount Guide Seagate Exos X 4006 Series Getting Started Seagate Exos X 4006 Series Hardware Installation and Maintenace Guide
