Supermicro A+ Server 2014CS-TR

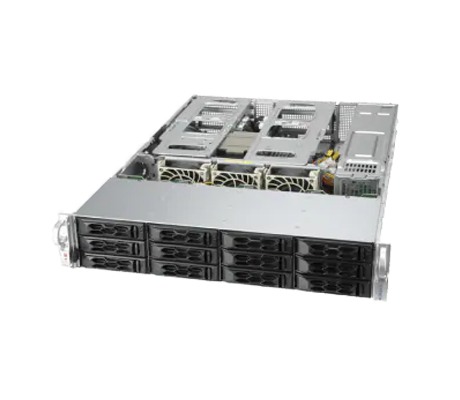

The AMD EPYC-based Supermicro A+ Server 2014CS-TR houses 12x hot-swap 3.5” SATA3 drive bays, or 8x SATA3 and 4x NVMe drives with optional cables, or 12x SAS3 drives via an optional SAS kit. 2x optional 2.5” peripheral drives can be installed on the back of the chassis with a rear drive bay kit. The 2U platform is powered by a single AMD EPYC processor from the 2nd or 3rd generation with up to 64 cores and a TDP of up to 280W. CPUs featuring AMD 3D V-Cache technology are also supported.

Overview

Supermicro A+ Server 2014CS-TR - System Overview

Ideal for financial services, cloud computing, deep learning inference, and more, the Supermicro 2014CS-TR supports up to 4TB of memory with 16x DDR4 DIMM slots. It comes equipped with dual redundant 920W Platinum level power supplies, plus 3x middle cooling fans. Redfish API, Supermicro Update Manager (SUM), SuperDoctor 5 (SD5), Super Diagnostics Offline, and IPMI 2.0 can all be used to manage the system locally and remotely. There are 4x full-height PCIe 4.0 x16 slot, plus 2x advanced I/O module (AIOM) mezzanine card slots, one with a x8 slot and the other with a x16 slot. Two PCIe 4.0 x4 slots on the system board can be outfitted with NVMe M.2 drives and used to boot the system in a mirrored RAID1. This platform will also support 2x 70W GPUs, including the NVIDIA T4.

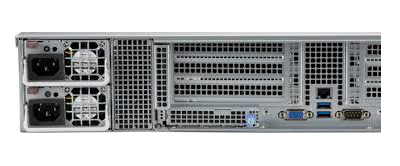

* This product is only offered as a fully assembled system. 8 DIMMs are advised for peak performance, but 1x CPU, 4x DIMMs, 1x HDD/NVMe, and 1x AIOM/AOC NIC card are the absolute minimum requirements. Supermicro 2014CS-TR rear of system

Specifications

Supermicro A+ Server 2014CS-TR - Specifications

Processor - 1 Socket

Single AMD EPYC™ 7002/7003 Series Processor
AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer
Socket SP3
Supports CPU TDP up to 280W
Up to 64 Cores

Memory

Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

Memory Slots:

16 x DIMM slots

Memory Type:

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

Drive Bays

12x Hot-swap 3.5" drive bays:

12x SATA3 by default
or 8x SATA3 + 4NVMe via optional cables
or 12x SAS3 via via optional SAS kit
Optional 2x 2.5" peripheral drive support via additional rear drive bays kits

M.2:

M.2 Interface: 2x PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110

On-Board Devices

Chipset:

System on Chip

SATA:

SATA3 (6Gbps)

Network Controllers:

Flexible networking provided via AIOM

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video:

ASPEED AST2600 BMC

Input/Output

SATA:

16x SATA3 (6 Gbps) ports

LAN:

Networking provided via AIOM
1x RJ45 Dedicated IPMI LAN port

USB:

2x USB 3.0 ports (rear)

COM:

1x COM Port (rear)

Video:

1x VGA Port

System BIOS

AMI 256Mb SPI Flash EEPROM

Management

Intel Node Manager
IPMI 2.0, KVM with dedicated LAN
NMI
SUM
SuperDoctor® 5
Watchdog

Front Panel

Power On/Off button
UID button

LEDs:

HDD activity LED
Network activity LEDs
Power status LED
Universal Information LED

Expansion Slots

4x PCI-E 4.0 x16 (FH, 10.5"L) slots
2x PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)

Power Supply

1U 920W redundant power supply

Chassis

1U Rackmount

Dimensions (D x W x H)

25.5" (648mm) x 17.2" (437mm) x 3.5" (89mm)

Weight

Gross Weight: 59 lbs (26.76 kg)

Documentation

Supermicro A+ Server 2014CS-TR - Documentation

Supermicro A+ Server 2014CS-TR Specs Sheet Supermicro A+ Server 2014CS-TR User Manual
