Supermicro ARS-111GL-DNHR-LCC GPU Server

Offering dual NVIDIA GH200 Grace Hopper Superchips, the Supermicro ARS-111GL-DNHR-LCC GPU Server is equipped for high-performance computing (HPC), Large Language models (LLM) and Generative AI, plus AI/Deep Learning Training and Inference. The NVIDIA GH200 features a Grace CPU merged with an H100 GPU connected via NVIDIA’s NVLink Chip-to-Chip(C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s.

Overview

Supermicro ARS-111GL-DNHR-LCC GPU Server - System Overview

Additional Information

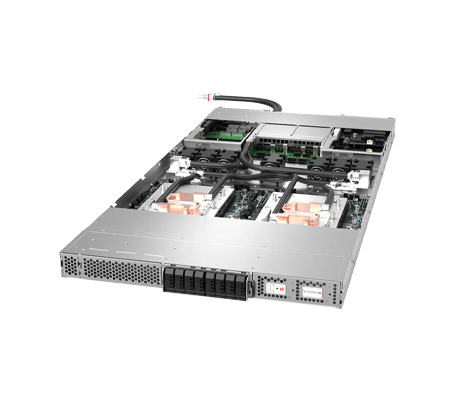

The Supermicro ARS-111GL-DNHR-LCC GPU Server is a 1U 2-node GPU system with optional Direct-to-Chip (D2C) liquid cooling cold plate. With standard air cooling, there are up to 7x heavy -duty 4cm fans with tachometric monitoring for speed. Of the 4x E1.S NVMe drive bays, 2x E1.S NVMe drive bays direct to the CP, per node. Per node there are 576GB of coherent memory supporting NVIDIA BlueField-3 DPU, which acts as a smart NIC or a ConnectX-7 NIC which is a high-performance NIC. That memory includes 480GB of LPDDR5X memory and 96GB of HBM3 memory from the integrated GPU for LLM applications. There are 2x NVMe slots on the system board for support of NVMe M.2 drives. The system is powered by dual 2700W Redundant power supply units.

*This system is only sold as completely assembled with a minimum of 1x CPU, 1x storage device HDD/HDS, M.2, and 1x NIC per node.

Available Configurations

Explore available configurations for the Supermicro ARS-111GL-DNHR-LCC GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Specifications

Supermicro ARS-111GL-DNHR-LCC GPU Server - Specifications

Processor (Per Node)

CPU
- 72-core NVIDIA Grace CPU on GH200 Grace Hopper Superchip

Core Count
- Up to 72C/72T; Up to 117MB Cache

Note
- Supports up to 2000W TDP CPUs (Liquid Cooled)

- Motherboard: Super G1SMH-G
- NVIDIA System on Chip

GPU (Per Node)

Max GPU Count
- 1x onboard GPU

Supported GPU
- NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper Superchip

CPU-GPU Interconnect
- NVIDIA NVLink-C2C

GPU-GPU Interconnect
- PCIe

Memory (Per Node)

Memory
- Onboard memory
- Up to 480GB ECC LPDDR5X
- Additional GPU Memory: Up to 96GB ECC HBM3

Drive Bays (Per Node)

Drive Bays Configuration
- Default: Total 4 bays
- 4x front fixed E1.S NVMe drive bays

M.2
- 2x M.2 NVMe slots (M-key)

Expansion Slots (Per Node)

PCIe Configuration
- Default: 2x PCIe 5.0 x16 FHFL slots

Input/Output (Per Node)

LAN
- 1x RJ45 1 GbE Dedicated BMC LAN port

USB
- 2x ports (rear)

Video
- 1x mini-DP port

System BIOS

BIOS Type
- AMI 64MB SPI Flash EEPROM

System Cooling

Fans
- Up to 7x Removable heavy-duty 4cm Fan(s)

Liquid Cooling
- Direct to Chip (D2C) Cold Plate (optional)

Dimensions and Weight

Form Factor
- 1U Rackmount

Height
- 1.75" (44 mm)

Width
- 17.33" (440 mm)

Depth
- 37" (940 mm)

Weight
- Gross Weight: 65.5 lbs (29.7 kg)
- Net Weight: 48.5 lbs (22 kg)
