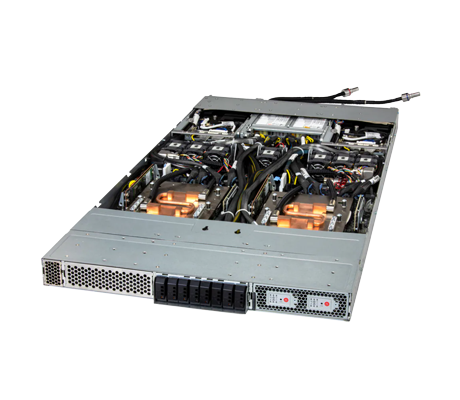

Featuring 2x hot-pluggable nodes, the Supermicro 111GL-DSHR-LCC GPU Server has an NVIDIA Grace Hopper Superchip with up to 72 cores per node. There are 8x E1.S drives with NVIDIA BlueField-3 NICs in Storage Configuration mode essentially splitting storage assets between each node. This platform is designed to support applications in high-performance computing (HPC), AI/Deep Learning Training and Inference, plus Large Language Model (LLM) and Generative AI models.
Supermicro ARS-111GL-DSHR-LCC GPU Server - System Overview
Additional Information
Each node on the Supermicro 111GL-DSHR-LCC GPU Server offers 576GB of coherent memory, which includes 480GB of LPDDR5X (CPU) and 96GB of HBM3 memory from the GPU for LLM applications. Between the CPU and GPU is NVIDIA’s NVLink low-latency, high-bandwidth interconnect offering data transfer speeds of up to 900GB/s. The NVIDIA Grace Hopper Superchip combines a Grace CPU with an H100 GPUwith up to 72 cores per node.

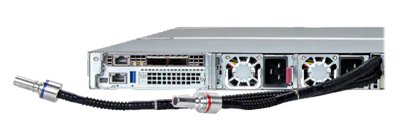

For additional expansion with NICs or storage controllers, each node offers 2x PCIe 5.0 x16 slots. The full-height, full-length slot is dedicated to an NVIDIA BlueField (DPU) data processing unit and the other is a low-profile PCIe slot. This system supports up to 8x hot-swap heavy duty fans for air cooling or Direct to Chip (D2C) cold plates for the CPUs.
*This platform is only sold completely assembled with 1x CPU, 1x storage device (HDD, HDS, M.2), and 1x NIC per node.
Supermicro ARS-111GL-DSHR-LCC GPU Server - Specifications
Processor (Per Node)
CPU - NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper Superchip
Core Count - Up to 72C/72T; Up to 117MB Cache
Note - Supports up to 2000W TDP CPUs (Liquid Cooled)
- Motherboard: Super G1SMH-G - NVIDIA System on Chip
GPU (Per Node)
Max GPU Count - Up to 1x onboard GPU
CPU-GPU Interconnect - NVIDIA NVLink-C2C
GPU-GPU Interconnect - PCIe
Memory (Per Node)
Memory - Onboard memory - Up to 480GB ECC LPDDR5X - Additional GPU Memory: Up to 96GB ECC HBM3
Drive Bays (Per Node)
Drive Bays Configuration - Default: Total 4 bays - 4x front hot-swap E1.S NVMe drive bays
Get a quote for Supermicro ARS-111GL-DSHR-LCC GPU Server
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
