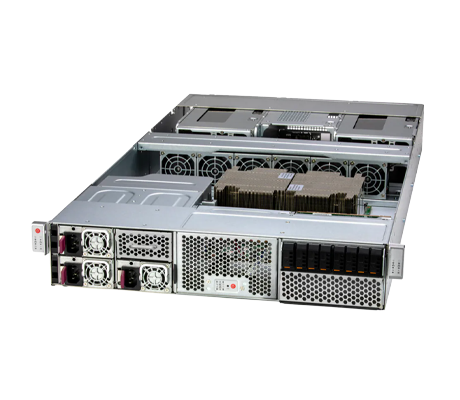

Additional InformationOutfitted with an NVIDIA Grace CPU, the Supermicro ARS-221GL-SR GPU Server is designed for high-performance computing (HPC), Large Language Models (LLM) Natural Language Processing, AI/Deep Learning plus general purpose computing. CPUs with a Thermal Design Power threshold of up to 600W when air-cooled are supported and provide up to 72 cores each. The CPU-to-GPU interconnect is provided by PCIe 5.0 x16 slots with a x16 link width. With each Superchip providing 480GB of LPDDR5X memory, in total the system provides 960GB of memory.
There are 7x PCIe slots with 4x PCIe 5.0 x16 full-height, full-length, double-width slots for GPUs and 3x PCIe 5.0 x16 slots for NICs, including an NVIDIA BlueField-3 DPU with 200Gb/s throughput with dual ports. Supermicro offers a few software utilities to manage the system, including Redfish API, the Supermicro Update Manager, KVM with a dedicated LAN, IPMI 2.0, Watch Dog, and an Out-of-Band Management Package. The system is powered by 3x front accessible 2000W power supply units.
CPU
- Dual processors
- NVIDIA Dual 72-core CPUs on a Grace CPU Superchip
Note
- Supports up to 600W TDP CPUs (Air Cooled)
- Motherboard: Super G1SMH
- Chipset: NVIDIA C2
Max GPU Count
- Up to 4x double-width GPUs
CPU-GPU Interconnect
- PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
- PCIe
Memory
- Onboard Memory
- Up to 960GB ECC LPDDR5X
Drive Bays Configuration
- Default: Total 8 bays
- 8x front hot-swap E1.S NVMe drive bays
M.2
- 2x M.2 PCIe 5.0 x4 NVMe slots (M-key 22110)
PCIe
Default:
- 3x PCIe 5.0 x16 FHFL slots
- 4x PCIe 5.0 x16 FHFL double-width slots
LAN
- 1x RJ45 1 GbE Dedicated BMC LAN port
USB
- 2x USB 3.0 Type-A ports (Rear)
Video
- 1x mini-DP port
TPM
- 1x TPM Onboard/port 80
BIOS Type
- AMI 64MB SPI Flash EEPROM
Software
- Redfish API
- Supermicro Update Manager (SUM)
- KVM with dedicated LAN
- IPMI 2.0
- Watch Dog
- OB Management Package (SFT-OOB-LIC )
Fans
- Up to 6x heavy duty fans with optimal fan speed control
- 3x 2000W Redundant Titanium Level (96%) power supplies
Form Factor
- 2U Rackmount
Height
- 3.46" (88 mm)
Width
- 17.25" (438.4 mm)
Depth
- 35.43" (900 mm)
Weight
- Gross Weight: 86.5 lbs (39.2 kg)
- Net Weight: 67.5 lbs (30.6 kg)
