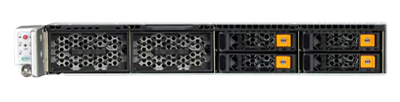

Additional InformationWith both processors installed, this platform provides up to 512 cores and 1024 threads. Supported CPUs are limited to a maximum TDP of up to 600W. Up to 8TB of memory can be installed offering speeds of up to 8000MT/s when all 32x DIMM slots are fitted with DDR5 RDIMMs. Faster speeds of up to 12800MT/s are supported using Multiplexed Rank DIMMs (MRDIMMs) in all slots. Two internal M.2 NVMe drives are available, with optional hot-swap capability. On the front panel, the Supermicro 1127H7-N holds up to 12x hot-swappable drive bays.
Drive Bay Configurations
Default: Total 12 bays
12 front hot-swap 2.5" SAS*/SATA* drive bays
Option A: Total 12 bays
12 front hot-swap 2.5" PCIe 6.0 NVMe* drive bays
Option B: Total 12 bays
12 front hot-swap E3.S 1T PCIe 6.0 NVMe* drive bays
Option C: Total 12 bays
12 front hot-swap E1.S PCIe 6.0 NVMe* drive bays
*NVMe/SAS/SATA support may require additional storage controller and/or cables
Expansion slots include 1x PCIe 6.0 x16 FHHL slot, 2x PCIe 6.0 x16 FHFL slots, and 1x PCIe 6.0 x16 AIOM slot which is OCP 3.0 compatible. In addition to these slots, the system supports up to 3x CXL 3.1 x16 devices. On-board devices include a system-on-chip design, hardware root of trust, IPMI 2.0 with virtual media and KVM-over-LAN, and an ASPEED AST2700 Baseboard Management Controller (BMC). System management supports Redfish APIs and Supermicro tools. Power is supplied by up to 2x redundant Titanium Level (96 %) power supplies rated at 1600W, 2000W, 2600W, or 3200W with full redundancy dependent on configuration and load.
*To maintain quality and integrity, this product is sold only as a completely-assembled system with 2x CPUs, minimum of 4x DIMMs, 1x AIOM/AOC NIC and 1x storage device.

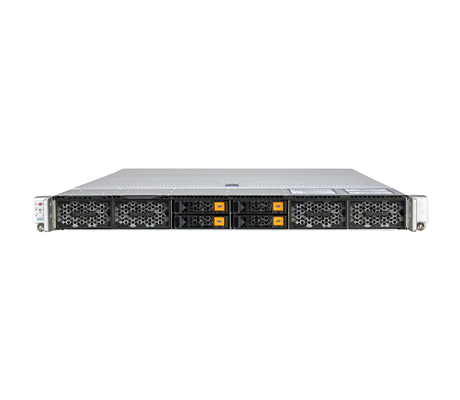

Explore available configurations for the Supermicro AS-1127H7-N Hyper Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
CPU
- Dual processors
- AMD EPYC 9006 SP7 Series Processors
Core Count
- Up to 512C/1024T
Note
- Supports up to 600W TDP CPUs (Air Cooled)
- Motherboard: Super H15DPH
Memory
- Slot Count: 32x DIMM slots
- Max Memory (1DPC): Up to 8TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM
- Max Memory (1DPC): Up to 8TB 12800MT/s ECC DDR5 MRDIMM
Drive Bays Configuration
Default: Total 12x bays
- 12x front hot-swap 2.5" SAS*/SATA* drive bays
Option A: Total 12x bays
- 12x front hot-swap 2.5" PCIe 6.0 NVMe* drive bays
Option B: Total 12x bays
- 12x front hot-swap E3.S 1T PCIe 6.0 NVMe* drive bays
Option C: Total 12x bays
- 12x front hot-swap E1.S PCIe 6.0 NVMe* drive bays
*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details
M.2
- 2x M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
PCIe Configuration
Default
- 1x PCIe 6.0 x16 FHHL slot
- 2x PCIe 6.0 x16 FHFL slots
- 1x PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)
CXL Support
- Up to 3x CXL 3.1 x16 devices

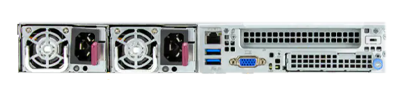

LAN
- 1x RJ45 1GbE Dedicated BMC LAN port
USB
- 2x USB 3.0 ports (rear)
- 1x USB 3.0 port (front)
Video
- 1x VGA port
TPM
- 1x TPM header
BIOS Type
- AMI 64MB SPI Flash EEPROM
BIOS Features
- Plug and Play (PnP)
- USB Keyboard support
- ACPI 6.6
- UEFI 2.11
- SMBIOS 3.8 or later
Software
- SuperCloud Composer (SCC)
- Supermicro Server Manager (SSM)
- Super Diagnostics Offline (SDO)
- KVM with dedicated LAN
- IPMI 2.0
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA)
- IPMIView
Fans
- Up to 8x counter-rotating 40x40x56mm Fan(s)
Air Shroud
- 2x Air Shrounds
- 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
- 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
- 2x 2000W Redundant (1 + 1) power supplies
- 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Form Factor
- 1U Rackmount
Height
- 1.7" (43 mm)
Width
- 17.2" (437 mm)
Depth
- 30.66" (778.7 mm)
Weight
- Gross Weight: 43 lbs (19.5 kg)
- Net Weight: 19.2 lbs (8.7 kg)
