Supermicro BigTwin SuperServer 221BT-DNC8R

The Supermicro BigTwin SuperServer 221BT-DNC8R is a 2x hot-plugabble node system with each node supporting dual 4th or 5th Generation Intel Xeon Scalable Processors and Intel Xeon CPU Max Series with high bandwidth memory (HBM). There are 16x DDR5 DIMM slots available on each node which can provide up to 4TB of memory each, for up to 8TB of memory system wide. Nodes are assigned 12x of the 24x 2.5-inch hot-swap NVMe/SAS drive bays with 2x NVMe and 10x SAS. The Supermicro 221BT-DNC8R server nodes each support 1x PCIe 5.0 x8 low-profile slots and 1x PCIe 5.0 x16 low-profile slots. A tri-mode SAS controller is pre-installed for SAS deployments.
Configure

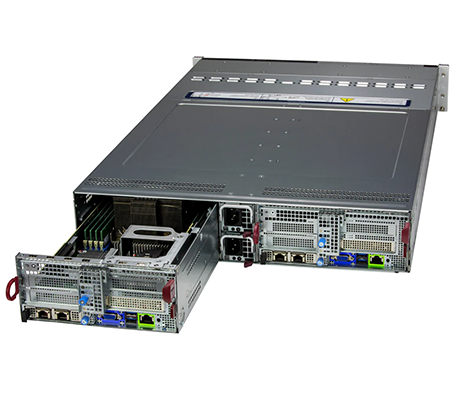

Supermicro 221BT-DNC8R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro BigTwin SuperServer 221BT-DNC8R - System Overview

Supermicro SuperServer 221BT-DNC8R front detail Supermicro SuperServer 221BT-DNC8R detail top

Additional Features

Designed for All-Flash Storage Area Network, All-Flash Hyperconverged Infrastructure, All-Flash Object Storage applications, and Storage Area Network tasks, the Supermicro BigTwin 221BT-DNC8R is a dual node system. Each node also supports an PCIe x8 NVMe boot controller featuring 2x M.2 drives, and an Advanced I/O Module (AIOM) or OCP 3.0 mezzanine card in a dedicated slot for network connectivity. It is powered by dual 2200W Titanium power supplies in a redundant configuration.

NOTE: This platform is only sold as a complete system with at least 2 CPU, 2 DIMMs, 1 NIC adapter, & 1 storage device (HDD/SSD/NVMe/M.2) drive per node.

Supermicro BigTwin SuperServer 221BT-DNC8R - Specifications

Processor - 2 Sockets (per Node)

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)

    • Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DET-B

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays (per Node)

    Hot-Swap:

  • 12 x 2.5" hot-swap NVMe/SAS drive bays (2 x PCIe 5.0 NVMe/SAS and 10x PCIe 4.0 NVMe/SAS)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280/22110
  • Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1

Expansion Slots (per Node)

  • 1 x PCIe 5.0 x8 Low-Profile slots
  • 1 x PCIe 5.0 x166 Low-Profile slots
  • 1 x PCIe 5.0 x 16 for AIOM/OCP 3.0
  • 2 x PCIe 4.0 x8 for 2 M.2 NVMe

On-Board Devices (per Node)

    SAS:

  • SAS3 (12Gbps) via Broadcom 3816 (IT mode)

    • Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    LAN:

  • 1 x RJ45 Dedicated BMC LAN port

    • USB:

  • 2 x USB 3.1 ports (2 rear)

    • Video:

  • 1 x VGA ports

    • Others:

  • 2 x M.2 for boot drive or caching
  • M.2 form factor: NVMe double-sided 22x110mm + 2280

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.68" (449mm)

    Depth: 28.75" (730mm)
