Supermicro BigTwin SuperServer 221BT-DNTR

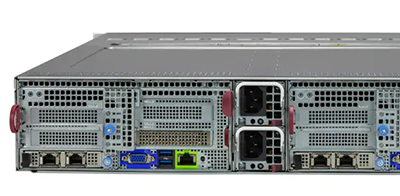

Designed for Big Data Analytics and AI applications, the Supermicro BigTwin SuperServer 221BT-DNTR is a 2U rack-mountable node system. It supports up to 2x 4th or 5th Generation Intel Xeon Scalable processors per node each housing 8x DDR5 DIMM slots for a total of 16x slots. Fully configured, the maximum memory capacity on each server node is 4TB. Each node is connected to 12x of the 24x 2.5-inch hot-swap NVMe/SATA drive bays with an optional M.2 NVMe boot controller. The rear of the Supermicro 221BT-DNTR holds 2x PCIe 5.0 x8 low-profile slots and a single PCIe 5.0 x16 low-profile slot.
Configure

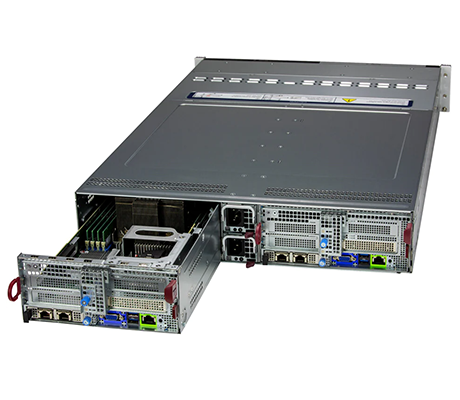

Supermicro 221BT-DNTR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro BigTwin SuperServer 221BT-DNTR - System Overview

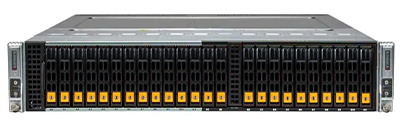

Supermicro SuperServer 221BT-DNTR front detail Supermicro SuperServer 221BT-DNTR detail top

Summary

The Supermicro BigTwin 221BT-DNTR server is designed for High-Performance File System tasks, Diskless HPC Clusters, Big Data Analytics and AI applications. This system is powered by dual 2200W power supplies in a redundant configuration.

NOTE: This system is only sold with a minimal configuration of 2 CPUs, 2x DIMMs, 1 HDD/SSD/NVMe/M.2, and 1x NIC per node.

Supermicro BigTwin SuperServer 221BT-DNTR - Specifications

Processor - 2 Sockets (per Node)

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​

    • Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DET-B

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays (per Node)

    Hot-Swap:

  • 12 x 2.5" hot-swap NVMe/SATA drive bays (2x PCI-E 5.0 NVMe/SATA and 10x PCI-E 4.0 NVMe/SATA)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280/22110

Expansion Slots (per Node)

  • 2 x PCIe 5.0 x8 LP slots
  • 1 x PCIe 5.0 x16 LP slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.68" (449mm)

    Depth: 28.75" (730mm)

Supermicro BigTwin SuperServer 221BT-DNTR - Documentation

Supermicro BigTwin SuperServer 221BT-DNTR Data Sheet Supermicro BigTwin SuperServer 221BT-DNTR User Manual Supermicro Baseboard Management Controller (BMC) X13 User's Manual
