Supermicro BigTwin SuperServer 221BT-HNTR

Featuring dual 4th or 5th Generation Intel Xeon Scalable Processors in each of 4x hot-pluggable server nodes, the Supermicro BigTwin SuperServer 221BT-HNTR has 24x NVMe/SATA bays. 6x of those drives are assigned to each node. There are a total of 16x DDR5 DIMM slots per node with a maximum memory capacity of up to 4TB. Each node of the Supermicro 221BT-HNTR server features 2x PCIe 5.0 x16 low-profile expansion slots. 2x NVMe M.2 drives are supported per node with an option for an M.2 Boot Controller.
Configure

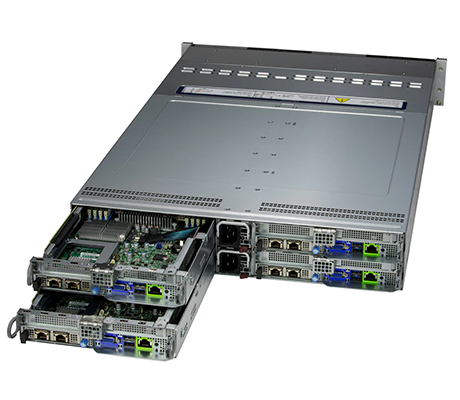

Supermicro 221BT-HNTR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro BigTwin SuperServer 221BT-HNTR - System Overview

Supermicro SuperServer 221BT-HNTR front detail Supermicro SuperServer 221BT-HNTR detail top

Summary

There are dual 3000W Titanium Level Power Supplies in a redundant configuration powering the Supermicro BigTwin 221BT-HNTR server. It is designed for All-Flash NVMe Hyperconverged Infrastructure, High-Performance File System applications, Diskless HPC Clusters, and Container-as-a-Service Application Accelerator among other applications.

NOTE: This system is only sold with a minimal configuration of 2 CPUs, 2x DIMMs, 1 HDD/SSD, and 1x NIC per node.

Available Configurations

Explore available configurations for the Supermicro BigTwin SuperServer 221BT-HNTR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro BigTwin SuperServer 221BT-HNTR - Specifications

Processor - 2 Sockets (per Node)

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 205W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​

    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions.

    Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DET-B

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays (per Node)

    Hot-Swap:

  • 6 x 2.5" hot-swap NVMe/SATA drive bays (2x PCI-E 5.0 NVMe/SATA and 4x PCI-E 4.0 NVMe/SATA)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280/22110

Expansion Slots (per Node)

  • 2 x PCIe 5.0 x16 LP slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.68" (449mm)

    Depth: 28.75" (730mm)
