Supermicro BigTwin SuperServer 222BT-HNR - System Overview
In addition to the storage on the front panel of the BigTwin SuperServer 222BT-HNR, there are 2x M.2 PCIe 5.0 x4 NVMe slots located on the server board to boot the operating system. When all 16x DIMM slots are filled with 256GB DDR5 RDIMMs, up to 4TB of memory can be achieved per node, supporting a maximum speed of up to 6400MT/s. This server is optimal for diskless HPC clusters, container-as-a-service; application accelerator and use in an all-flash NVMe hyperconverged infrastructure.

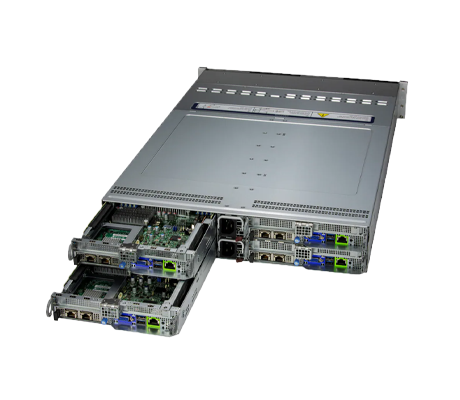

The system's back panel has dual 3600W Redundant (1 + 1) Titanium Level (96%) power supplies in the center of the chassis between the server nodes. A single OCP 3.0 compatible PCIe 5.0 x16 AIOM slot and 2x PCIe 5.0 x16 low-profile slots are available for each BigTwin 222BT-HNR node. Numerous software programs such as Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), SuperCloud Composer, Supermicro Think-Agent Service (TAS), and SuperServer Automation Assistant (SAA) can be used to help Administrators manage this system.
*The BigTwin SuperServer 222BT-HNR is only sold as a complete system with a minimum of 2x CPUs, 2x DIMMs, 1x NIC, and one storage device per node.
