Supermicro BigTwin SuperServer 621BT-DNC8R

Featuring dual 4th or 5th Generation Intel Xeon Scalable Processors or Intel Xeon CPU Max series CPUs in each of 2x server nodes, the Supermicro BigTwin SuperServer 621BT-DNC8R has 12x 3.5-inch drive bays. Each node supports up to 2x 4th Generation Intel Xeon Scalable Processors, and when fully configured will hold up to 4TB of DDR5 memory across 16x DIMM slots. Nodes are connected to 6x 3.5-inch hot-swap NVMe/SAS drive bays. On the rear of each node of the Supermicro 621BT-DNC8R, there are 2x PCIe 5.0 x8 low-profile slots and a single PCIe 5.0 x16 low-profile slots.
Configure

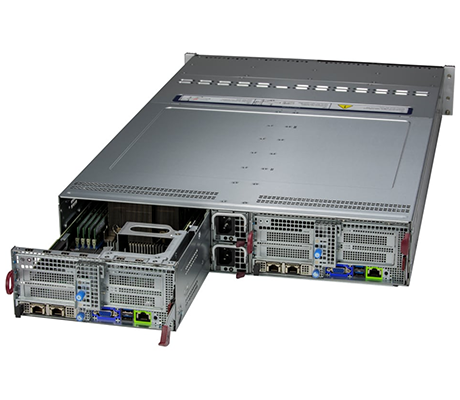

Supermicro 621BT-DNC8R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro BigTwin SuperServer 621BT-DNC8R - System Overview

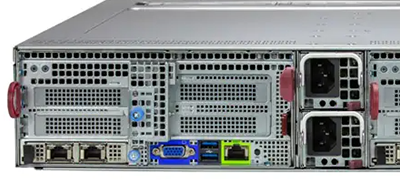

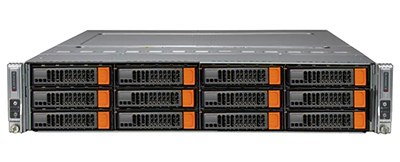

Supermicro SuperServer 621BT-DNC8R front detail Supermicro SuperServer 621BT-DNC8R detail top

Additional Features

Powering the Supermicro BigTwin 621BT-DNC8R are 2x 2200W Redundant Titanium level power supplies in a redundant configuration. The system also supports a dedicated PCIe 4.0 x8 slot for an optional NVMe M.2 card with riser and Broadcomm 3808 tri-mode controller used in initiator target mode (IT mode). This system is designed for Hyperconverged Infrastructure, Back-up and Recovery tasks, and Scale-Out Object Storage.

NOTE: This system is only sold as a complete system with at least 2 CPUs, 2 DIMMs, 1 NIC, and 1 storage device (HDD/SSD/NVMe/M.2) per node.

Supermicro BigTwin SuperServer 621BT-DNC8R - Specifications

Processor - 2 Sockets (per Node)

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 300W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​

    • Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DET-B

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays (per Node)

    Hot-Swap:

  • 12 x 2.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 10x PCI-E 4.0 NVMe/SAS)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280/22110

Expansion Slots (per Node)

  • 1 x PCIe 5.0 x8 LP slot
  • 1 x PCIe 5.0 x16 LP slot
  • 1 x PCIe 5.0 x16 for AIOM/OCP 3.0

On-Board Devices (per Node)

    SAS:

  • SAS3 (12Gbps) via Broadcom® 3816 (IT mode)

    • Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    LAN:

  • 1 x RJ45 Dedicated BMC LAN port

    • USB:

  • 2 x USB 3.1 ports (2 rear)

    • Video:

  • 1 x VGA ports

    • Others:

  • 2 x M.2 for boot drive or caching
  • M.2 form factor: NVMe double-sided 22x110mm

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.68" (449mm)

    Depth: 28.75" (730mm)

Supermicro BigTwin SuperServer 621BT-DNC8R - Documentation

Supermicro BigTwin SuperServer 621BT-DNC8R Data Sheet Supermicro BigTwin SuperServer 621BT-DNC8R User Manual
