Supermicro BigTwin SuperServer 621BT-HNC8R

The Supermicro BigTwin SuperServer 621BT-HNC8R houses 4x compute nodes in its 2U chassis. There are 2x CPU sockets on each node compatible with 4th or 5th Generation Intel Xeon Scalable processors or Intel Xeon CPU Max Series with high bandwidth memory (HBM). Fully configured, each node supports a maximum memory capacity of up to 4TB of DDR5 memory across 16x DIMM slots. Each node also has 3x of the 12x 3.5-inch hot-swap NVMe/SAS drive bays in front. On the rear of the Supermicro 621BT-HNC8R server, each node features 2x PCIe 5.0 x16 low-profile slots for expansion purposes, plus two PCIe 4.0 NVMe M.2 slots on the system board.
Configure

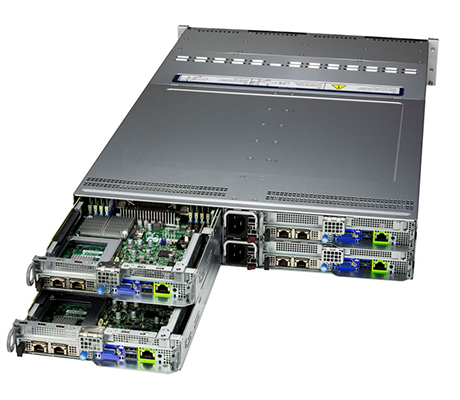

Supermicro 621BT-HNC8R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro BigTwin SuperServer 621BT-HNC8R - System Overview

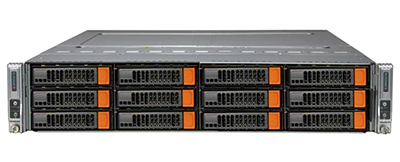

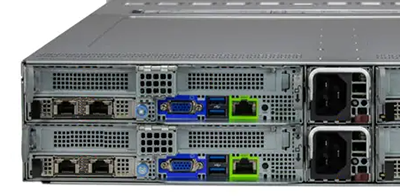

Supermicro SuperServer 621BT-HNC8R front detail Supermicro SuperServer 621BT-HNC8R detail top

Additional Features

The Supermicro BigTwin 621BT-HNC8R is a high-density platform designed for Hyperconverged Infrastructure, Container Storage applications, and Scale-Out File Storage. It is powered by dual 3000W Titanium level power supplies in a redundant 1+1 configuration.

NOTE: This system is only sold as a complete system with at least 2 CPUs, 2 DIMMs, 1 NIC, and 1 storage device (HDD/SSD/NVMe/M.2).

Supermicro BigTwin SuperServer 621BT-HNC8R - Specifications

Processor - 2 Sockets (per Node)

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 185W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​

    • *Air Cooled CPUs with TDP over 185W only supported under specific conditions.

    Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DET-B

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays (per Node)

    Hot-Swap:

  • 6 x 2.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 4x PCI-E 4.0 NVMe/SAS)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280/22110

Expansion Slots (per Node)

  • 2 x PCIe 5.0 x16 LP slots
  • 1 x PCIe 5.0 x16 for AIOM/OCP 3.0

On-Board Devices (per Node)

    SAS:

  • SAS3 (12Gbps) via Broadcom® 3816 (IT mode)

    • Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    LAN:

  • 1 x RJ45 Dedicated BMC LAN port

    • USB:

  • 2 x USB 3.1 ports (2 rear)

    • Video:

  • 1 x VGA ports

    • Others:

  • 2 x M.2 for boot drive or caching
  • M.2 form factor: NVMe double-sided 22x110mm + 2280

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.68" (449mm)

    Depth: 28.75" (730mm)
