Supermicro BigTwin SuperServer 621BT-HNTR

The Supermicro BigTwin SuperServer 621BT-HNTR is a quad node hot-pluggable system designed for Hyperconverged Infrastructure, Container Storage, and Scale-Out File Server applications. Each node houses dual 4th or 5th Generation Intel Xeon Scalable Processors with 16x DDR5 DIMM slots that can hold up to 4TB of memory. Each of the nodes is assigned 3x of the 12x 3.5-inch hot-swap NVMe/SATA drive bays on the front of the chassis. 2x PCIe 5.0 x16 low-profile expansion slots are accessible from the rear of each node on the Supermicro 621BT-HNTR.
Configure

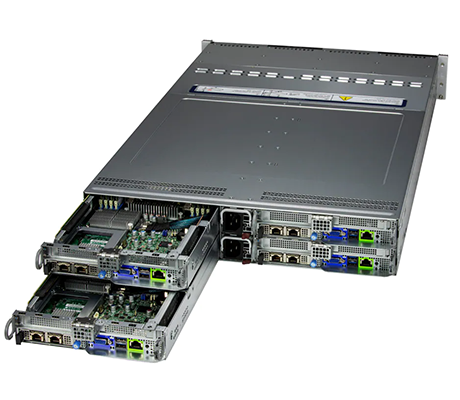

Supermicro 621BT-HNTR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro BigTwin SuperServer 621BT-HNTR - System Overview

Supermicro SuperServer 621BT-HNTR front detail Supermicro SuperServer 621BT-HNTR detail top

Summary

Designed for Hyperconverged Infrastructure, Container Storage, and Scale-Out File Server tasks. The Supermicro BigTwin 621BT-HNTR is powered by dual 3000W Titanium Level power supplies in a redundant configuration.

NOTE: This platform is only sold as a complete system with at least 2 CPU, 2 DIMMs, 1 NIC adapter, & 1 HDD/SSD/NVMe/M.2 per node.

Supermicro BigTwin SuperServer 621BT-HNTR - Specifications

Processor - 2 Sockets (per Node)

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 185W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)

    • *Air Cooled CPUs with TDP over 185W only supported under specific conditions.

    Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DET-B

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays (per Node)

    Hot-Swap:

  • 3 x 3.5" hot-swap NVMe/SATA drive bays (2x PCI-E 5.0 NVMe/SATA and 1x PCI-E 4.0 NVMe/SATA)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280/22110

Expansion Slots (per Node)

  • 2 x PCIe 5.0 x16 LP slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.68" (449mm)

    Depth: 28.75" (730mm)

Supermicro BigTwin SuperServer 621BT-HNTR - Documentation

Supermicro BigTwin SuperServer 621BT-HNTR Data Sheet Supermicro BigTwin SuperServer 621BT-HNTR User Manual
