Designed for use as a web server, cloud computing, and edge node applications, the Supermicro CloudDC A+ 2015CS-TNR server features a single AMD EPYC 9004 series processor to support the latest technology. These CPUs support a maximum core count of up to 128 cores and 256 threads, a TDP of up to 360W, and AMD’s 4th gen 3D V-Cache technology. The 2U system has 12x 3.5-inch hot-swap hybrid NVMe, SATA, or SAS drive bays, that can be outfitted with 2.5-inch drives. 12x DDR5 memory module slots provide up to 3TB of DDR5 memory operating at speeds of up to 4800MHz using 256GB RDIMMs.
Supermicro CloudDC A+ 2015CS-TNR Server - System Overview

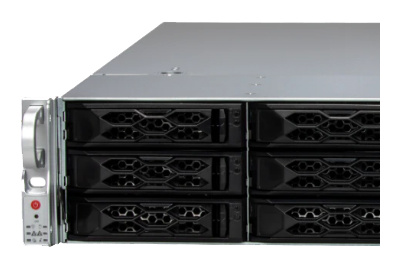

In addition to the drive bays up front, the CloudDC A+ 2015CS-TNR server supports 2x optional 2.5” hot-swap NVMe, SATA, or SAS drive bays on the rear of the chassis and 2x onboard NVMe M.2 PCIe 2280 or 22110 cards using the integrated Gen3 x2 slots. These M.2 slots can only be used as a boot drive and can be mirrored for redundancy. Depending on the drive configuration, some front drive bays and/or PCIe slot options may be limited when using the rear drive bays. Also on the rear, there are 2x PCIe 5.0 x16 FHFL slots, 2x PCIe 5.0 x16 FHHL slots, and dual PCIe 5.0 x16 Advanced I/o Module (AIOM) slots for networking. 2x double-width GPUs can be installed, including the NVIDIA A100, A40, A30, A16 and H100. AMD GPUS are also supported and include the MI210. A dedicated IPMI LAN port allows Administrators to manage the system at-chassis or remotely. Supermicro provides several options to manage the system including SuperDoctor5, Redfish API, Super Diagnostics Offline, and IPMI 2.0.
Supermicro CloudDC A+ 2015CS-TNR Server - Specifications
Processor - 1 socket
Single Socket SP5 + LGA 6096
4th Generation AMD EPYC 9004 Series Processor
4th Generation AMD EPYC 9004 Series Processor with AMD 3D V-Cache Technology
Up to 128C/256T

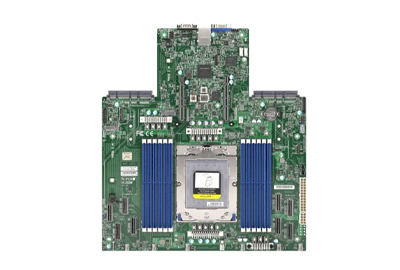

Super H13SSW
Memory
Memory Capacity:
12 x DIMM slots
Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory
Drive Bays
Hot-Swap:
12x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (12 SATA by default)
*Requires additional part from optional list; depending on drive option, using rear drive bay may limit front drive and / or PCIe slot options.
M.2:
2x NVMe (PCIe Gen 3x2, Boot drive only)
M-Key, 2280/22110
Expansion Slots
2x PCIe 5.0 x16 FHFL slot(s)
2x PCIe 5.0 x16 FHHL slot(s)
2x PCIe 5.0 x16 AIOM slot(s)
Input / Output
LAN:
1 x Dedicated IPMI LAN port
USB:
2 x USB 3.0 port(s) (2 rear)
Video:
1 x VGA port(s)
Serial Port:
1 x COM Port(s) (1 rear)
TPM:
TPM Header
On-Board Devices
Chipset:
System on Chip
Network Connectivity:
Via Slim-AIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Management
IPMI 2.0
KVM with dedicated LAN
Super Diagnostics Offline
SuperDoctor 5
Supermicro Update Manager (SUM)
Supermicro Server Manager (SSM)
Redfish API
System BIOS
AMI 32MB SPI FLASH ROM
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
System Cooling
Fans:
3x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
1 x Air Shroud
Power Supply
1200W Redundant Titanium Level power supplies
Chassis
Form Factor
2U
Dimensions (D x W x H)
25.5" (648mm) x 17.2" (437mm) x 3.5" (89mm)
Weight
Net Weight: 33 lbs (15 kg)
Gross Weight: 59 lbs (26.76 kg)
