The Supermicro CloudDC SuperServer 112C-TN is outfitted with a single Intel Xeon 6 6700 series processor with E-cores. It supports up to 2x single-width GPUs via dual risers, compatible with a PCIe 5.0 x16 CPU-to-GPU interconnect. With 144 cores and 144 threads, this setup is a viable choice for virtualization, high-performance computing, storage head nodes, and other demanding applications.

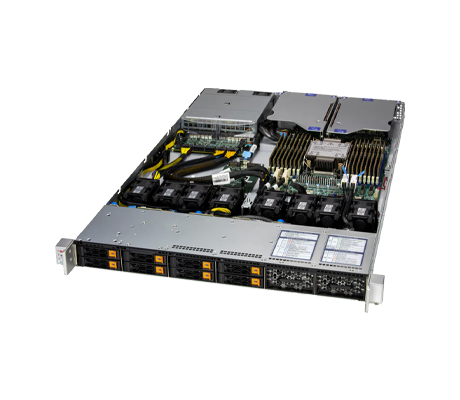

Supermicro CloudDC SuperServer 112C-TN - System Overview

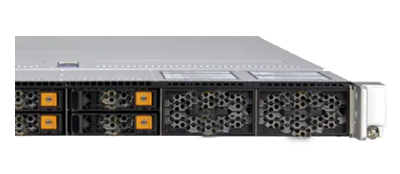

The CloudDC SuperServer 112C-TN offers up to 2TB of 5200MT/s ECC DDR5 RDIMM memory. Although memory speed is dependent on the CPU, memory modules and memory configuration memory speeds of up to 6400MT/s with 1x DIMM pe channel (1DPC) or up to 5200MT/s with 2x DIMMs per channel installed. The X14 generation motherboard features 2x M.2 PCIe 5.0 x2 NVMe slots for 2280 or 22110 form factor drives, though a VROC key is necessary for RAID configurations. The system is cooled by 8x counter-rotating fans positioned behind the backplane. It also includes 2x 1000W redundant Titanium Level (96%) power supplies at the rear. Additionally, the front of the system accommodates up to 12x drive bays.
Default: Total 8 bays
8x front hot-swap 2.5" PCIe 5.0 NVMe/SAS*/SATA* drive bays
8x front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays
4x front hot-swap 2.5" SAS*/SATA* drive bays
The SuperServer 112C-TN can be successfully monitored and updated using a variety of management tools, including Supermicro SuperDoctor 5 (SD5), Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA).
*This system can only be sold as a completely assembled server with a minimum of 1x CPU, 1x DIMM, 1x storage device HDD/HDS/M.2, and 1x NIC. NIC requirement can be either an AIOM or PCIe card.
Compose the exact configuration you looking for to build the perfect server. Just add components and quantities you would like to incorporate into the system
Get a quote for Supermicro CloudDC SuperServer 112C-TN
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
