Supermicro CloudDC SuperServer 121C-TN10R

On the front of the server, there are 10x hot-swappable 2.5-inch NVMe/SATA/SAS drive bays. The 1U Supermicro CloudDC SuperServer 121C-TN10R is rackmountable and supports 2x 4th and 5th Generation Intel Xeon Scalable processors. Each CPU socket houses 8x DDR5 DIMM slots for a total of 16x DIMM slots on the system board. Fully configured, the system will support up to 4TB of memory. Expanding the capabilities of the Supermicro 121C-TN10R, are 2x PCIe 5.0 x16 full-height, half-length slots. This system can support 2x Nvidia L4 GPUs.
Configure

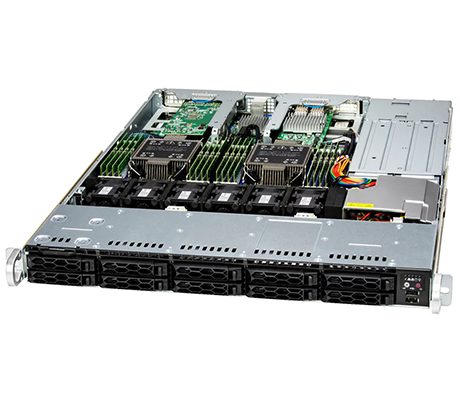

Supermicro 121C-TN10R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro CloudDC SuperServer 121C-TN10R - System Overview

Supermicro SuperServer 121C-TN10R front detail Supermicro SuperServer 121C-TN10R detail top

Additional Features

Designed for Web Server, Firewall applications, Cloud Computing, CDN, Edge Nodes, and Data Center Optimized tasks, the Supermicro CloudDC 121C-TN10R server is 2-socket system with support for 4th and 5th Generation Intel Xeon Scalable processors. 2x PCIe 5.0 x4 M.2 drive slots are also available on the system board, ideal for OS installation or fast access storage. With 2x PCIe 5.0 x16 full-height, half-length slots on the rear of the system, the capabilities of this system have plenty of opportunity to be expanded. This system is powered by 2x 860W Platinum Level power supplies in a redundant configuration.

NOTE: This is only sold as a completely assembled system with a minimum of 2x CPUs, 4x DIMMs, 1x storage device HDD, HDS (not including M.2), and 1x expansion slot/AIOM (Advanced I/O Module) NIC.

Supermicro CloudDC SuperServer 121C-TN10R - Specifications

Processor - 2 Sockets

  • Dual Socket E (LGA-4677)
  • 5th Gen Intel Xeon Scalable Processors
  • 4th Gen Intel Xeon Scalable Processors
  • Support up to 270W TDP CPUs (air-cooled)*
  • Up to 32C/64T; Up to 82.5MB Cache per CPU

    • *Air Cooled CPUs with TDP over 250W only supported under specific conditions.

    Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DDW-A

Memory

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    Drive Bays:

  • 10 x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid)

    • M.2:

  • 2 x PCIe 5.0 x4
  • M-key, 2280

Expansion Slots

  • 2 x PCIe 5.0 x16 FHHL slots

On-Board

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe:

  • NVMe; RAID 0/1/5/10 support (*VROC is required)

    • Chipset:

  • Intel C741

    • Network Connectivity:

  • with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x Dedicated IPMI LAN port

    • USB:

  • 2 x USB 2.0 ports (2 front)
  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA port

    • Serial Port

  • 1 x COM Port (1 rear)

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 23.5" (597mm)

    Net Weight: 25 lbs (11.3 kg)
